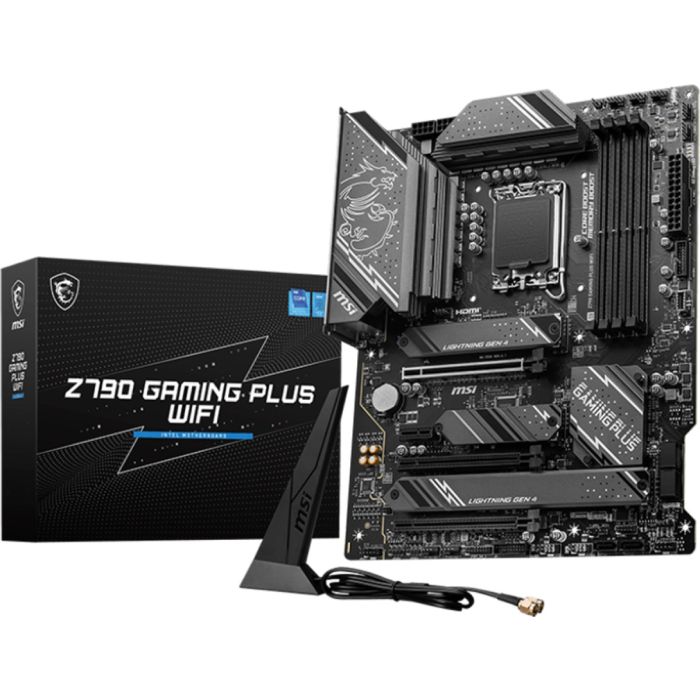

MSI Z790 GAMING PLUS WIFI, LGA 1700, 4x DDR5, IEEE 802.11ax, Bluetooth 5.3
Технически параметри:
| Сокет: | LGA1700 |
| Чипсет: | Intel Z790 |
| Поддържани процесори: | - Intel Celeron
- Intel Pentium Gold
- Intel Core 12-та генерация
- Intel Core 13-та генерация
- Intel Core 14-та генерация
|
| Поддържана памет: | DDR5 |
| Честота на паметта: | 5600 MHz |
| Брой слотове за памет: | 4 |
| Максимален капацитет поддържана памет: | До 192 GB |
| Звукова карта: | - 7.1 CH HD Audio
- Realtek Audio
|
| LAN: | - 10/100/1000/2500 Mb/s
- WiFi 6E 802.11a/b/g/n/ac/ax
- Bluetooth V5.3
|
| Интерфейси: | - 1x 24-pin ATX Power connector
- 1x Trusted Platform Module (TPM) header
- 6x system fan headers
- 2x PCI Express 3.0 x1
- 6x SATA3 6.0 Gb/s
- 2x Front panel connectors
- 1x TBT Connector
- 1x CPU Fan connector
- 1x Front panel audio connector
- 1x 4-pin PUMP fan connector
- 4x EZ Debug LED
- 2x 8-pin 12V Power connectors
- 1x PCI Express 4.0 x4
- 1x Tuning controller connector
- 2x M.2 slots Combo (NVMe PCIe 4.0 / SATA)
- 2x M.2 slot (NVMe PCIe 4.0)
- 1x PCI Express 5.0 x16
- 1x USB 3.2 Gen 2 Type-C
- 4x USB 2.0
- 1x Chassis Intrusion
- 4x USB 3.2 Gen 1 Type A
- 2x Addressable V2 RGB LED connector
- 2x RGB LED connectors
- 1x USB4 card connector
|
| Портове: | - 1x DisplayPort
- 1x PS/2 keyboard/mouse combo port
- 1x RJ-45
- 2x Antenna Ports
- 4x USB 2.0
- 6x Audio Jacks
- 1x BIOS Flashback Button
- 2x USB 3.2 Gen 1 Type-A
- 1x USB 3.2 Gen 2 Type-A
- 1x HDMI 2.1
- 1x USB 3.2 Gen 2x2 Type-C
|
| Форм фактор: | ATX |
| Размери: | 24.4 x 30.5 см |
More Information
| Процесорен слот |
LGA1700 |
| Поддържана памет |
DDR5 |
| Брой RAM слотове |
4 |
| Чипсет |
Intel Z790 |
