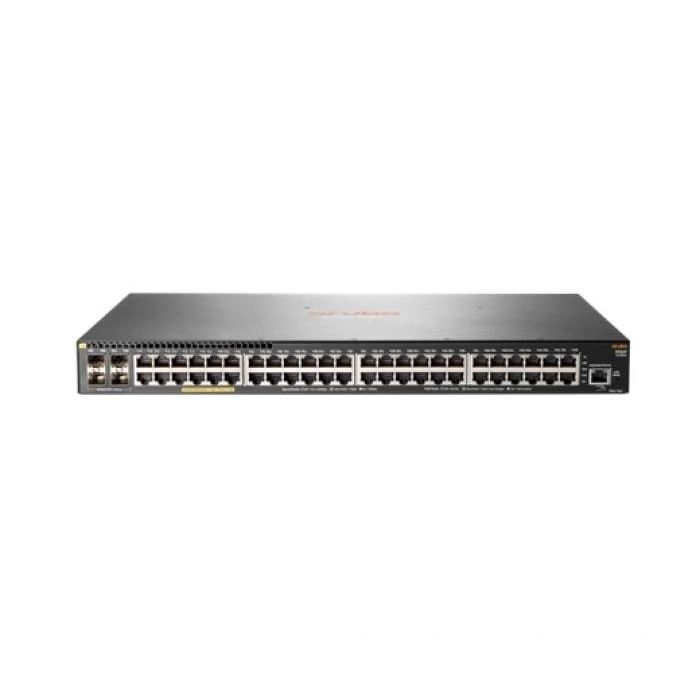

HPE Aruba Networking 2930F 48G PoE+ 4SFP+ Switch

Be the first to review this product

$14,809.00

In stock

SKU

144412

Details

Комутатор Aruba 2930F 48G PoE+ 4SFP+ Swch JL256A

Суич, тип:	Fixed Port
Общ брой портове:	52
Основни портове, тип:	48x10/100/1000Base-T
Power Over Ethernet (PoE):	IEEE 802.3af and IEEE 802.3at; Pre-standard PoE support; PoE power: 370 W PoE+
Uplink портове:	4x10GE SFP
Свободни (10GB) слотове:	Не
Управление:	Aruba AirWave Network Management; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band management (serial RS-232C or micro USB)
Stackable:	Не
Fans:	Да
Захранване:	Internal
Routing:	Layer 3 Advansed
Памет (Flash, RAM):	Flash Memory: 4 GB eMMC; RAM: 1 GB DDR3 SDRAM
Капацитет за маршрутизиране/превключване, Gbps:	176 Gbps
Пропускателна способност, Mpps:	112 Mpps
MAC адреси:	32768 MAC addres table size
VLAN (брой, стандарти):	Supports IEEE 802.1Q (4,094 VLAN IDs) and 2K VLANs simultaneously IEEE 802.1v protocol VLANs Rapid Per-VLAN Spanning Tree (RPVST+) GVRP and MVRP VxLAN Jumbo packet support
QoS:	Traffic prioritization (IEEE 802.1p) - Allows real-time traffic classification into eight priority levels mapped to eight queues; Layer 4 prioritization - Enables prioritization based on TCP/UDP port numbers; Class of Service (CoS); Rate limiting
L2 мрежови стандарти:	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3ad IEEE 802.3az IEEE 802.3x IEEE 802.1AB IEEE 802.1AX-2008 IEEE 802.1D IEEE 802.1p IEEE 802.1Q IEEE 802.1s IEEE 802.1w IEEE 802.1v IEEE 802.1X IEEE 802.1ap
L3 мрежови стандарти:	Static IP routing; 256 static and 10000 RIP routes; Routing Information Protocol (RIP) Provides RIPv1 RIPv2 and RIPng routing; Access OSPF - Provide OSPFv2 and OSPFv3 protocols for routing between access and the next layer on the LAN.
IPv6 functionality:	IPv6 host IPv6 routing MLD snooping IPv6 ACL/QoS Dual stack (IPv4 and IPv6)
Сигурност:	IEEE 802.1X Web/MAC-based authentication ACLs Source-port filtering RADIUS/TACACS+ Secure shell SSL Port security MAC address lockout Secure FTP STP BPDU port protection DHCP protection Dynamic ARP protection STP root guard Private VLAN
Размери (Ш, Д, В), mm:	443 x 304 x 44
Опция за монтаж:	Rackmount
Други:	1 dual-personality (RJ-45 or USB micro-B) serial console port

More Information

More Information
Брой портове	52
PoE портове	48
SFP/SFP+/XFP портове	4
PoE Бюджет	370
Дълбочина (мм)	304
1000 Mbps портове	48
