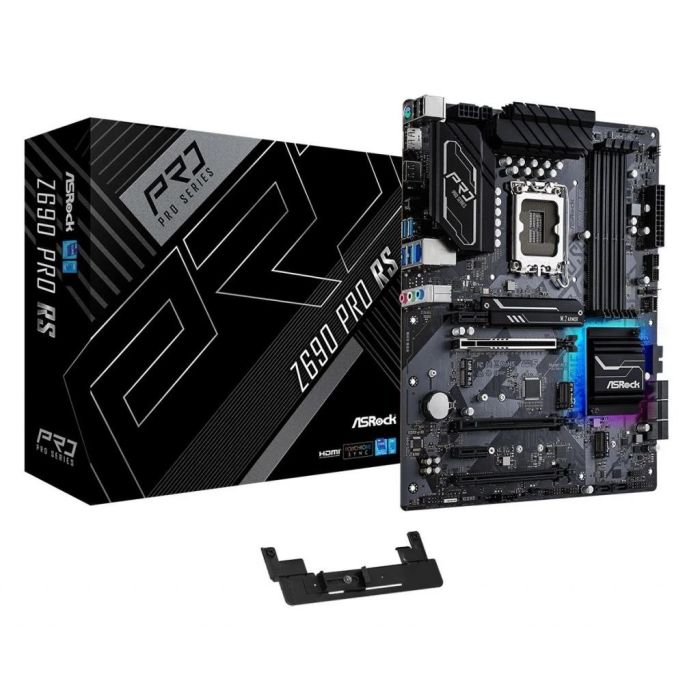

ASROCK Main Board Desktop Z690 PRO RS S1700, Z690, 4x DDR4, 3x PCIe x16
| Сокет: | LGA1700 |
| Чипсет: | Intel Z690 |
| Поддържани процесори: | Intel Core 12-та генерация |
| Поддържана памет: | DDR4 |
| Честота на паметта: | 3200 MHz |
| Брой слотове за памет: | 4 |
| Звукова карта: | - 7.1 CH HD Audio
- Realtek Audio
|
| LAN: | 10/100/1000/2500 Mb/s |
| Интерфейси: | - 8 x SATA3 6.0 Gb/s
- 1 x 24-pin ATX Power connector
- 1 x Thunderbolt™ AIC Connector
- 2 x PCI Express 3.0 x1
- 1 x M.2 Wi-Fi module slot
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header
- 1 x CPU Fan connector
- 1 x 8-pin 12V Power connector
- 1 x Front panel audio connector
- 1 x 4-pin 12V Power connector
- 2 x USB 2.0 Headers
- 1 x CPU/Water Pump Fan Connector
- 2 x USB 3.2 Gen 1 Header
- 1 x SPI TPM header
- 4 x Chassis/Water Pump Fan Connectors
- 1 x Front Panel Type C USB 3.2 Gen2 Header
- 1 x Ultra M.2 Socket Combo (NVMe PCIe 3.0 / SATA)
- 2 x Hyper M.2 Socket (NVMe PCIe 4.0)
- 3 x Addressable LED Header
- 3 x PCI Express 5.0/4.0/3.0 x16
|
| Портове: | - 1 x HDMI
- 1 x PS/2 keyboard/mouse combo port
- 1 x RJ-45
- 3 x HD Audio Jack
- 2 x USB 2.0 Type A
- 1 x BIOS Flashback Button
- 2 x USB 3.2 Gen 2 Type-A
- 2 x USB 3.2 Gen 1 Type-A
- 3 x Antenna Mounting Points
- 1 x DisplayPort 1.4
|
| Форм фактор: | ATX |
| Размери: | 30.5 x 24.4 см |
| Окомплектовка: | С опаковка |
More Information
| Процесорен слот |
LGA1700 |
| Поддържана памет |
DDR4 |
| Брой RAM слотове |
4 |
| Чипсет |
Intel Z690 |
