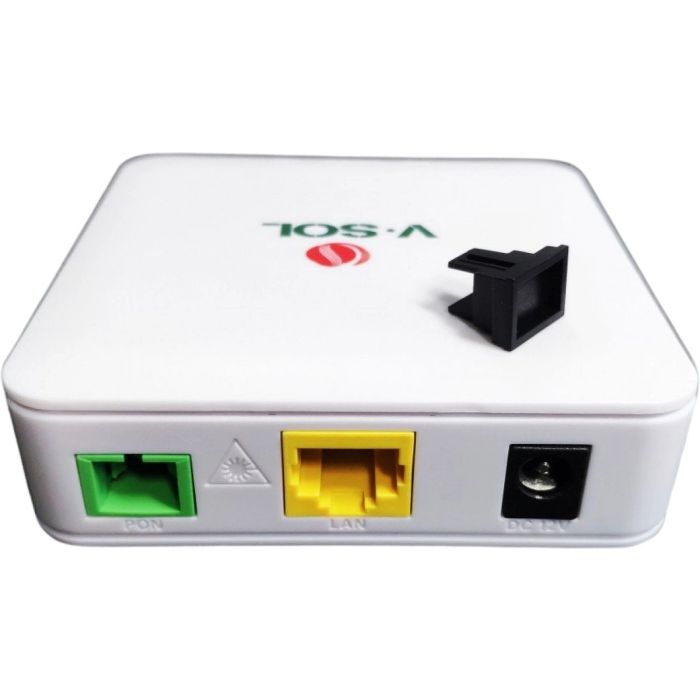

xPON 1GE ONU V2801SG, SC/APC

○ Hardware Parameter

Dimension

82mm×82mm×25mm(L×W×H)

Net weight

85g

Operating condition

Operating Temp: -10 ~ +55°C
Operating Humidity: 5 ~ 95% (non-condensed)

Storing condition

Storing temp: -40 ~ +70°C
Storing humidity: 5 ~ 95%  (non-condensed)

Power adapter

DC 12V, 0.5A, external AC-DC power adaptor

Power supply

≤4W

Interface

1GE

Indicators

SYS, LINK/ACT, REG





○ Interface parameter

PON interface

• 1XPON port(EPON PX20+ and GPON Class B+)
• SC single mode, SC/UPC connector
• TX optical power: 0～+4dBm
• RX sensitivity: -27dBm
• Overload optical power: -3dBm(EPON) or -8dBm(GPON)
• Transmission distance: 20KM
• Wavelength: TX 1310nm, RX1490nm

LAN interface

1*GE, Auto-negotiation RJ45 connectors

○ Function Data

XPON Mode

Dual mode,Auto-access to EPON/GPON OLT

Uplink Mode

Bridging and Routing Mode

Abnormal protection

Detecting Rogue ONU, Hardware Dying Gasp

Firewall

DDOS, Filtering Based on ACL/MAC/URL

○ Product Feature

Basic

• Support MPCP discover®ister
• Support authentication Mac/Loid/Mac+Loid
• Support Triple Churning
• Support DBA bandwidth
• Support auto-detecting, auto-configuration, and auto firmware upgrade
• Support SN/Psw/Loid/Loid+Psw authentication

Alarm

• Support Dying Gasp
• Support Port Loop Detect
• Support Eth Port Los

LAN

• Support Port rate limiting
• Support Loop detection
• Support Flow control
• Support Storm control

VLAN

• Support VLAN tag mode
• Support VLAN transparent mode
• Support VLAN trunk mode(max 8 vlans)
• Support VLAN 1:1 translation mode(≤8 vlans)

Multicast

• Support IGMP v1/v2/Snooping
• Max Multicast vlan 8
• Max Multicast Group 64

QOS

• Support 4 queues
• Support SP and WRR
• Support 802.1P

L3

• Support IPv4
• Support DHCP/PPPOE/Static IP
• Support Static route
• Support NAT

Management

• Support CTC OAM 2.0 and 2.1
• Support ITUT984.x OMCI
• Support WEB
• Support TELNET
• Support CLI
