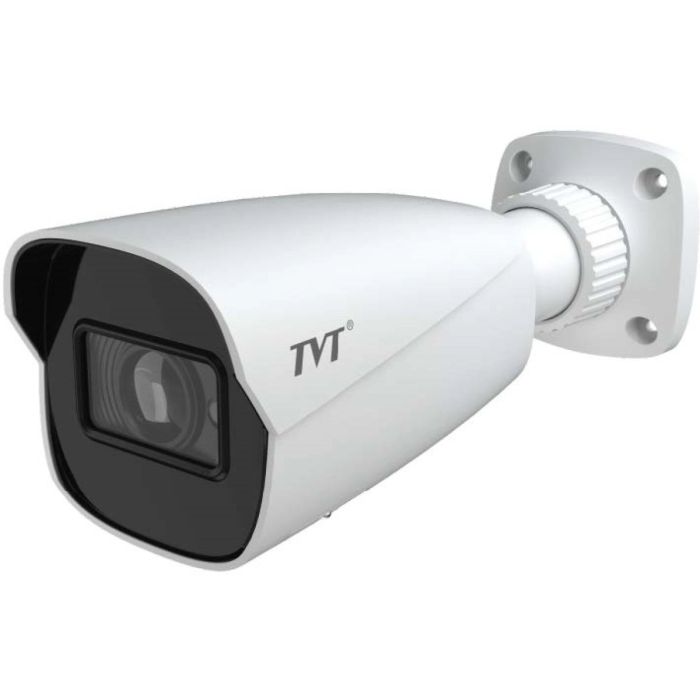

Камера TVT IPC 8MP TD-9482S3B(D/PE/AR3), Bullet

Features

   H.265+/H.265/H.264+/H.264/MJPEG coding

   Max. resolution: 8MP (3840 × 2160 )

   Fixed lens：2.8 mm

   ICR auto switch, true day / night vision

   3D DNR, true WDR, HLC, BLC, smart IR and ROI coding

   30~50m IR night view distance

   1CH audio input

   Built-in micro SD card slot, up to 256GB

   DC12V/PoE power supply

   Support three streams

   IP 67

   Support mobile surveillance by smart phones with iOS and Android OS

   Intelligent analytics

Specification

Model	TD-9482S3B
Camera
Image Sensor	1 / 2.8" CMOS
Image Size	3840×2160
Electronic Shutter	1 s ~ 1 / 100000 s
Iris Type	Fixed Iris		DC Iris
Min. Illumination	0.02 lux @ F1.6, AGC ON; 0 lux with IR
Lens	2.8 mm @F1.6, H.FoV:101°; V.FoV:53°; D.FoV:120°
Focus	Fixed
Lens Mount	M12
Day&Night	ICR
Wide Dynamic Range	120dB
BLC	Yes
HLC	Yes
Defog	Yes
Digital NR	3D DNR
Angle Adjustment	Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360°
DORI Distance
Lens	Detect	Observe	Recognize	Identify
2.8mm	86.65m(284.28ft)	34.66m(113.71ft)	17.33m(56.85ft)	8.66m(28.41ft)
2.8~12mm(W)	86.65m(284.28ft)	34.66m(113.71ft)	17.33m(56.85ft)	8.66m(28.41ft)
2.8~12mm(T)	289.06m(552.31ft)	115.62m(240.12ft)	57.81m(136.06ft)	28.91m(84.04ft)
Video Compression	H.265+ / H.265 / H.264+ / H.264 / MJPEG
H.264 Compression Standard	Baseline Profile/Main Profile/High Profile
Resolution	8MP ( 3840 × 2160 ), 6MP( 3072 × 2048 ),5MP( 2592 × 1944),
	4MP ( 2560 × 1520), 2K(2560 × 1440 ), 3MP(2304 × 1296),
	1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240
Main Stream	60Hz : 8MP(1~20fps)/6MP/5MP/4MP/2K/3MP/1080P/720P(1~30fps)
	50Hz : 8MP(1~20fps)/6MP/5MP/4MP/2K/3MP/1080P/720P(1~25fps)
Sub Stream	60Hz: 720P(1~12fps)/D1/480 × 240(1~30fps)
	50Hz: 720P/D1/480 × 240(1~25fps)
Third Stream	60Hz: D1/CIF/480 × 240 (1~30fps)
	50Hz: D1/CIF/480 × 240 (1~25fps)
Bit Rate	64 Kbps ~ 12 Mbps
Bit Rate Type	VBR / CBR
Audio Compression	G711A / U
Image Settings	Повече информация Повече информация Delivery Status Налично
