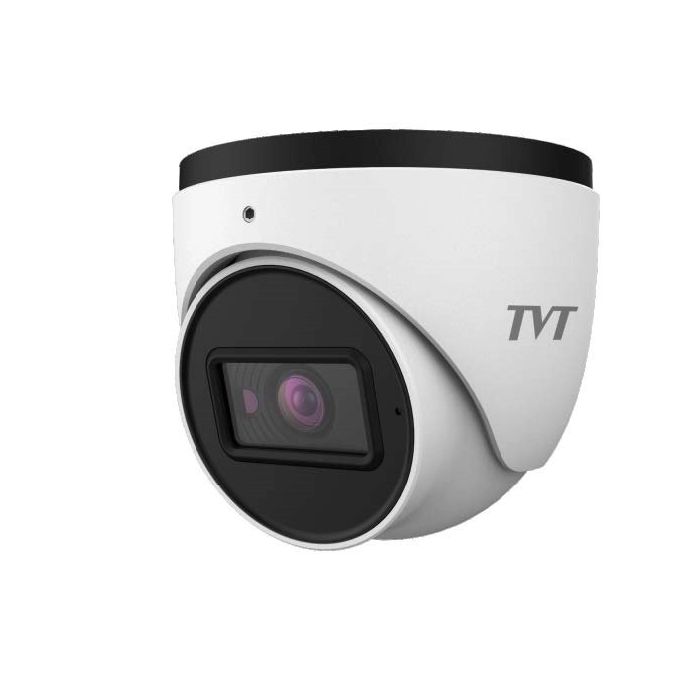

Камера TVT IPC 4MP TD-9544E3B(D/PE/AR2), Turret
104,90 €
На склад
SKU
454862
Features
H.265+/H.265/H.264+/H.264/MJPEG coding
Max. resolution: 2592 × 1520
Fixed Lens: 2.8 mm
ICR auto switch, true day / night vision
20 ~ 30m IR night view distance
3D DNR, true WDR, HLC, BLC, Defog, Smart IR and ROI coding
Support image distortion correction
Built-in micro SD card slot, up to 256GB
DC12V/PoE power supply
IP 67 ingress protection
Support three streams
Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
Intelligent analytics
Specification
Model TD-9544E3B Camera Image Sensor 1 / 3 "CMOS Image Size 2592 × 1520 Electronic Shutter Auto/manual; manual mode: 1 / 2s ~ 1 / 100000 s Iris Type Fixed Iris Min. Illumination 0.005 lux@F1.6,AGC ON;0 lux with IR Lens Focus Fixed Lens Mount M12 Day & Night ICR Wide Dynamic Range 120dB BLC Yes HLC Yes Defog Yes S/N Ratio ≥50dB Digital NR 3D DNR Angle Adjustment Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360° Image Video Compression Main stream: H.265+ / H.265 / H.264+ / H.264
Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG H.264 Compression Standard Baseline Profile/Main Profile/High Profile Resolution 4MP (2592×1520), 2K(2560×1440), 3MP(2304×1296), 1080P(1920×1080 ),
720P ( 1280 × 720 ), D1, CIF, 480 × 240, VGA(640 × 480) Main Stream 4MP/2K/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
HFR mode: 1080P / 720P( 60Hz : 1 ~ 60fps; 50Hz: 1~50fps ) Sub Stream 720P/D1/CIF/VGA ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) Third Stream D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) Bit Rate 64 Kbps ~ 8 Mbps Bit Rate Type VBR / CBR Audio Compression G711A / U Image Settings ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc.
adjustable through client software or web browser ROI Each ROI to be configured separately Intelligent Analytics Smart Event Line crossing, region intrusion/entrance/exiting, loitering detection,
illegal parking detection, abandoned/ missing object detection Statistics Target counting by line/area, heat map Exception Detection Scene change, video blur and abnormal color detection, audio exception Face Detection Face detection and face capture Video Metadata Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 5 motor vehicle features and 1 non-motor vehicle feature DORI Distance Lens Detect Observe Recognize Identify 2.8mm 60.69m(199.11ft) 24.28m(79.65ft) 12.14m(39.82ft) 6.07m(19.91ft) 3.6mm 75.24m(246.82ft) 30.10m(98.75ft) 15.05m(49.37ft) 7.52m(24.67ft) Interfaces Network RJ 45 10M/100M self-adaptive Ethernet port Video Output No
Повече информация
Повече информация
Delivery Status
Налично
H.265+/H.265/H.264+/H.264/MJPEG coding
Max. resolution: 2592 × 1520
Fixed Lens: 2.8 mm
ICR auto switch, true day / night vision
20 ~ 30m IR night view distance
3D DNR, true WDR, HLC, BLC, Defog, Smart IR and ROI coding
Support image distortion correction
Built-in micro SD card slot, up to 256GB
DC12V/PoE power supply
IP 67 ingress protection
Support three streams
Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
Intelligent analytics
Specification
| Model | TD-9544E3B | |||
| Camera | ||||
| Image Sensor | 1 / 3 "CMOS | |||
| Image Size | 2592 × 1520 | |||
| Electronic Shutter | Auto/manual; manual mode: 1 / 2s ~ 1 / 100000 s | |||
| Iris Type | Fixed Iris | |||
| Min. Illumination | 0.005 lux@F1.6,AGC ON;0 lux with IR | |||
| Lens | ||||
| Focus | Fixed | |||
| Lens Mount | M12 | |||
| Day & Night | ICR | |||
| Wide Dynamic Range | 120dB | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Defog | Yes | |||
| S/N Ratio | ≥50dB | |||
| Digital NR | 3D DNR | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360° | |||
| Image | ||||
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | |||
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile | |||
| Resolution | 4MP (2592×1520), 2K(2560×1440), 3MP(2304×1296), 1080P(1920×1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240, VGA(640 × 480) | |||
| Main Stream | 4MP/2K/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) HFR mode: 1080P / 720P( 60Hz : 1 ~ 60fps; 50Hz: 1~50fps ) | |||
| Sub Stream | 720P/D1/CIF/VGA ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) | |||
| Third Stream | D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) | |||
| Bit Rate | 64 Kbps ~ 8 Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Audio Compression | G711A / U | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser | |||
| ROI | Each ROI to be configured separately | |||
| Intelligent Analytics | ||||
| Smart Event | Line crossing, region intrusion/entrance/exiting, loitering detection, illegal parking detection, abandoned/ missing object detection | |||
| Statistics | Target counting by line/area, heat map | |||
| Exception Detection | Scene change, video blur and abnormal color detection, audio exception | |||
| Face Detection | Face detection and face capture | |||
| Video Metadata | Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 5 motor vehicle features and 1 non-motor vehicle feature | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 60.69m(199.11ft) | 24.28m(79.65ft) | 12.14m(39.82ft) | 6.07m(19.91ft) |
| 3.6mm | 75.24m(246.82ft) | 30.10m(98.75ft) | 15.05m(49.37ft) | 7.52m(24.67ft) |
| Interfaces | ||||
| Network | RJ 45 10M/100M self-adaptive Ethernet port | |||
| Video Output | No | |||
