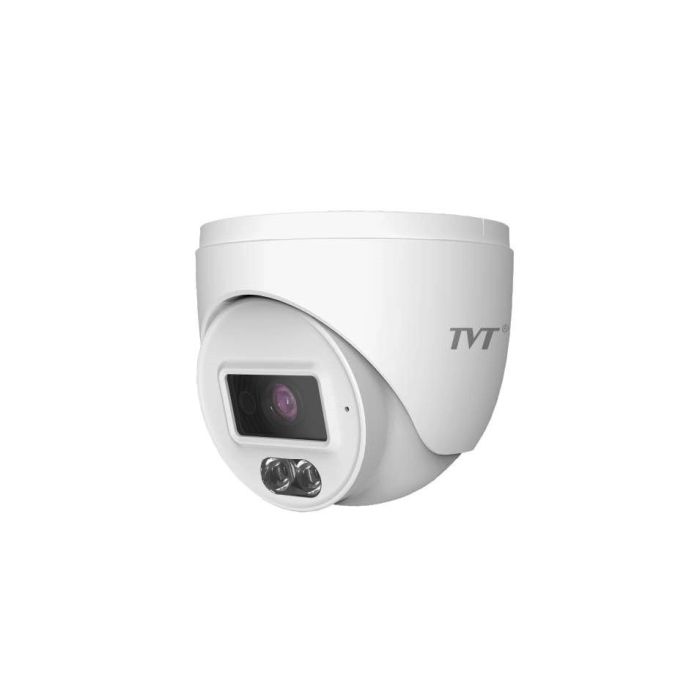

Камера TVT IPC 2MP Full Color TD-9520S4L-C(D/PE/AW1), Turret

Features

H.265+ /H.265 /H.264+ /H.264/MJPEG coding

Max. resolution: 2MP ( 1920 × 1080)

Fixed Lens：2.8mm

Auto day/night switch

3D DNR, WDR, HLC, BLC, etc.

ROI coding

Support smart supplement light

10~20m white light view distance; 10~20m IR view distance

DC12V/PoE power supply

IP 67 ingress protection

Support dual streams

Support remote monitoring by smart phones& tablet PCs with iOS and Android OS

Support line crossing detection & region intrusion detection

Support SMD

Specification

Model	TD-9520S4L-C
Camera
Image Sensor	1 / 3 "CMOS
Image Size	1920×1080
Electronic Shutter	1 / 3s ~ 1 / 100000s
Iris Type	Fixed Iris
Min. Illumination	0.02 lux @F2.2, AGC ON; 0 lux (Illumination on)
Lens	2.8mm@F2.2, Horizontal FoV: 95°;Vertical FoV:55°;Diagonal FoV:109°
Focus	Fixed
Lens Mount	M12
Day&Night	ICR
Wide Dynamic Range	Digital WDR
BLC	Yes
HLC	Yes
Digital NR	Yes
S/N Ratio	≥50dB
Angle Adjustment	Pan: 0°~360°; Tilt:0°~75°;Rotation: 0°~360°
DORI Distance
Lens	Detect	Observe	Recognize	Identify
2.8mm	41m(133ft)	17m(55ft)	8m(26ft)	4m(13ft)
3.6mm	58m(190ft)	23m(75ft)	12m(39ft)	6m(19ft)
Video Compression	Main stream: H.265+ / H.265  /  H.264  +  /  H.264 Sub stream: H.265+ / H.265 / H.264 + / H.264 / MJPEG
H.265 Compression Standard
Resolution	1080P (1920×1080), 720P(1280×720), D1, VGA(640×480), 480×240, CIF
Main Stream	1080P/720P(60Hz: 1~30fps; 50Hz: 1~25fps)
Sub Stream	D1/VGA/480× 240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps)
Bit Rate	64 Kbps ~ 3 Mbps
Bit Rate Type	VBR / CBR
Audio Compression	G711A/U
Image Settings	ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser
ROI	Each ROI to be configured separately
Interfaces
Network	RJ45
Video Output	No
Audio	1CH built-in MIC
Storage	No
Reset	No
Functions
Remote Monitoring	Web browser /TVT NVR/NVMS2.X/Mobile APP
Web Browser
