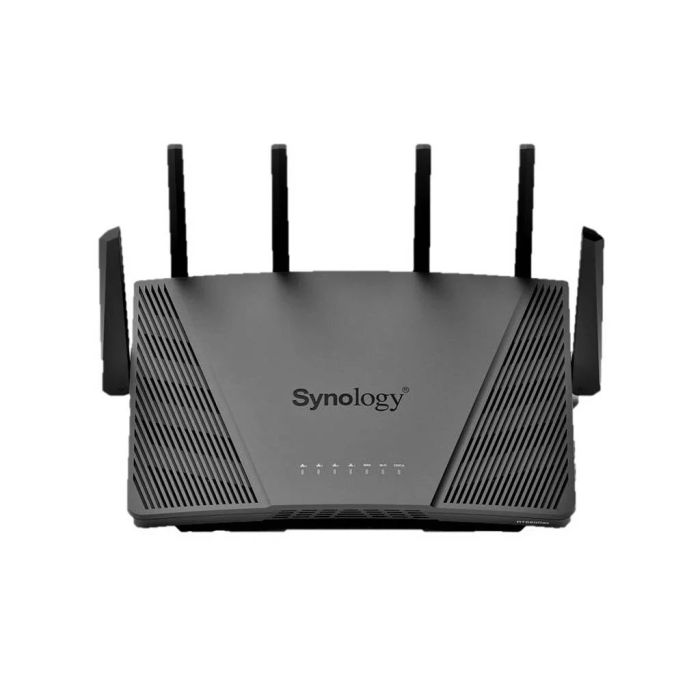

Router RT6600ax Wi-Fi 6 tri-band - up to 6.6 Gbps, 2.5 Gbe WAN/LAN port
Hardware
CPU | Quad-core 1.8 GHz |
Hardware L7 engine | Yes |
Memory | DDR3 1 GB |
Antenna type | 2T2R + 4T4R omnidirectional high-gain dipole (2.4 GHz/5 GHz) |
RJ-45 ports | • 1 x Gigabit WAN • 1 x 2.5GbE configurable WAN/LAN • 3 x Gigabit LAN |
External ports | 1 x USB 3.2 Gen 1 (Type-A) |
Size (HxWxD) | 175 mm x 320 mm x 200 mm (antennas in upright position) |
AC adapter input voltage | 100 V to 240 V AC |
Power frequency | 50 to 60 Hz, single phase |
Operating environment | • 5°C to 40°C (40°F to 104°F) • 8% to 80% RH |
Storage environment | • -20°C to 60°C (-5°F to 140°F) • 5% to 95% RH |
Maximum operating altitude | 5,000 m (16,400 ft) |
Wireless
Wireless standards | • IEEE 802.11 a/n/ac/ax simultaneous tri-band • 802.11k/v/r roaming support |
Max. data rate | • 2.4 GHz: Up to 600 Mbps • 5 GHz-1: Up to 4800 Mbps • 5 GHz-2: Up to 1200 Mbps |
Wireless security | WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA2/WPA3-Personal, WPA3-Personal/Enterprise, Wi-Fi Enhanced Open (OWE), Wi-Fi Protected Setup (WPS) 2.0 |
Other wireless functions | Smart Connect for automatic band steering, independent Wi-Fi schedule ON/OFF, guest network |
Features
Operation modes | |
DHCP | Server/client mode, client list, MAC address reservation |
Port forwarding | DMZ, UPnP, VPN pass-through (PPTP, IPSec, L2TP, SIP) |
Parental control | Per-device configurable internet schedule, allow/block list, DNS-based web filter with built-in database, YouTube, Google, and Bing search integration, supports Google Safe Browsing |
Traffic control | • Per-device custom speed, traffic monitoring, per-application limits, and advanced usage reporting • Application Layer (Layer 7) monitoring and management |
Network tools | Ping, Traceroute, WoL over Synology QuickConnect integration |
Security | • Denial of service (DoS) protection and IP auto block mechanism • SSL certificates with Let's Encrypt integration • Synology Security Advisor • Two-factor authentication |
Network separation | Max. number of VLANs: 5 |
VPN clients | PPTP, OpenVPN™, L2TP over IPSec |
IPv6 support | IPv6 DHCP server / client, DS-Lite, 6in4, 6to4, 6rd, Dual-Stack, DHCPv6-PD, IPv6 Relay, FLET's IPv6 |
Backup solutions | Back up & restore SRM configuration, Time Machine support (with attached USB storage device) |
Notifications | Email, SMS, push service (via DS router) |
File service | SMB, AFP, FTP/FTPS, WebDAV |
FTP server | Bandwidth control for TCP connections, custom FTP passive port range, anonymous FTP, FTP SSL/TLS and SFTP protocols, transfer logs |
iOS/Android™ applications | DS router, VPN Plus, DS cloud, DS file, DS get (Android™) |
Anywhere access | Synology QuickConnect, Dynamic DNS (DDNS) |
Printer support | • Max. number of printers: 1 • Printing protocols: LPR, CIFS, IPP |
Advanced functions | Smart WAN - Dual WAN load balancing and failover, policy route, static route, network address translation (NAT), SNMP, SSH, LAN/WLAN IGMP snooping, PPPoE relay |
Supported browsers | Google Chrome®, Firefox®, Microsoft Edge®, Safari® 13 and later, and Safari (iOS 13.0 and later) on iPad, Chrome (Android™ 11.0 and later) on tablets |
Interface languages | English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svensk, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, |
Add-on Packages
VPN Plus Server3 | Turn your Synology Router into a powerful VPN server. VPN Plus Server allows secure VPN access through web browsers and clients, with support for various VPN services - WebVPN, Synology SSL VPN, SSTP, OpenVPN, L2TP over IPSec, and PPTP. Multiple management tools are available to network administrators to regulate and monitor VPN traffic |
Threat Prevention | Greatly enhance the security of your router with IDS and IPS systems, designed to safeguard your network against internet threats |
Cloud Station Server | Sync data from multiple platforms, centralizing it on the router while easily keeping historical versions of important files |
RADIUS Server | Provides centralized authentication, authorization, and accounting for wireless network access |
DNS Server | An address server for your local network |
Download Station | • Supported download protocols: BT/HTTP/FTP/NZB/eMule • Max. number of concurrent download tasks: 50 |
Media Server | Stream multimedia directly from your router |
Certifications and Packaging
Certification | Wi-Fi Certified, CE, UKCA, TELEC, VCCI, iDA, BSMI, JATE, FCC, NCC, RCM |
Environmental safety | RoHS Compliant |
Package content | • RT6600ax main unit • AC power adapter • RJ-45 LAN cable • Quick Installation Guide |
Warranty | 2 years |
