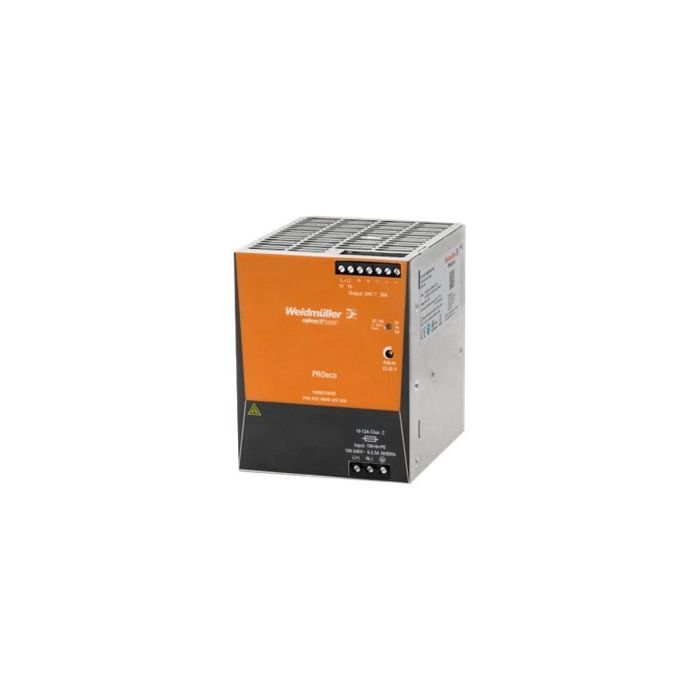

POWER SUPPLY DIN PS24 480W
379,90 €
SKU
277504
POWER SUPPLY DIN PS24 480W
| General | |
| Device Type: | Power supply - DIN rail mountable |
| Power Device | |
| Input Voltage: | AC 100-240 V |
| Input Voltage Range: | AC 85 - 264 V |
| Frequency Required: | 47 - 63 Hz |
| Output Voltage: | 24 V |
| Max Electric Current: | 5.2 A |
| Power Capacity: | 480 Watt |
| Efficiency: | 91% |
| Power Factor (PF): | 0.98 |
| Miscellaneous | |
| MTBF: | 500,000 hours |
| Features: | Corrosion protection, metal housing, overheat protection, short-circuit protection |
| Compliant Standards: | TUV, EN 61000-3-2, EN55022, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, RoHS, EN 61000-4-8, IEC 60068-2-27, IEC 60068-2-6, cULus, IP20, EAC, EN 50178, EN 61558-2-16 |
| Environmental Parameters | |
| Min Operating Temperature: | -25 °C |
| Max Operating Temperature: | 70 °C |
| Humidity Range Operating: | 5 - 95% |
| Dimensions & Weight | |
| Width: | 10 cm |
| Depth: | 12 cm |
| Height: | 12.5 cm |
| Weight: | 1.557 kg |
Гаранция : 3 години
| Delivery Status | На път |
|---|
