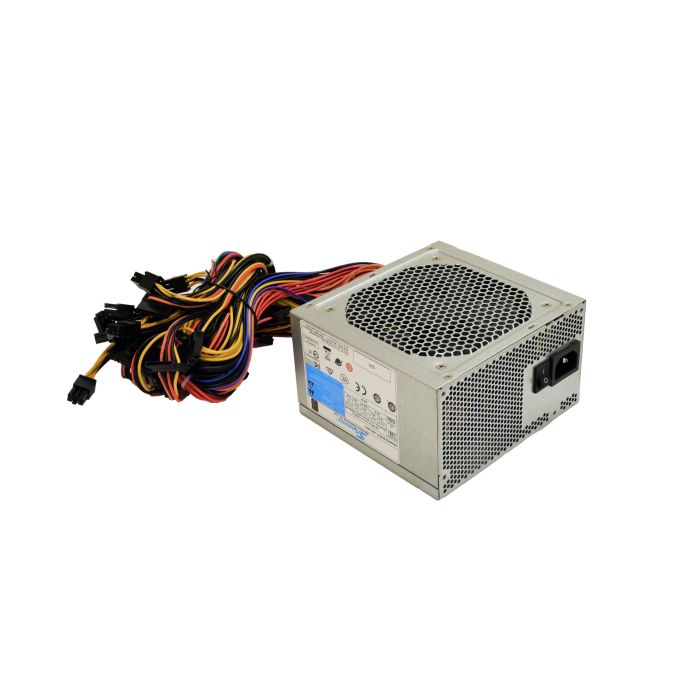

Power supply 600W, APFC, 12cm fan, ATX 12V v.2.3, 80+ gold, DC to DC converter design, MTBF full load 25? amb. : >100K hours; SSP-600JT
Power supply 600W, APFC, 12cm fan, ATX 12V v.2.3, 80+ gold, DC to DC converter design, MTBF full load 25? amb. : >100K hours; SSP-600JT
Fully Fixed
| Overview |
|---|
| ATX Compatibility | Intel ATX 12 V v2.3 compliant |
| Dimensions | 140 × 150 × 86 mm |
| Circuit design | DC to DC converter design |
| Fan | 120 mm double ball bearing fan |
| Fan Control | S2FC |
| Protections | SCP, OVP, OPP |
| Connections | PCIe |
| Quality Control | Burn-in, high temperature cycled on/off |
| Safety and Environmental Compliance | CB, cTUVus, TUV, CCC, BSMI, RCM(SAA) |
| Technical Specifications |
|---|
| Input Frequency | 50 / 60 Hz |
| Efficiency | 80PLUS® Gold |
| Line Regulation | ‡ 1% (typical) |
| Load Regulation | ‡ 5 % (typical) |
| Cross Regulation | ‡ 5 % (typical) |
| MTBF, full load @ 25 °C ambient (excl. DC fan) | > 100,000 hours |
| Active Power Factor Correction | 99 % (typical) |
| DC Output |
|---|
| +3.3V: | +5V: | +12 V Combined: | -12 V: | +5 Vsb: | Total Continuous Power: | Input Type |
| 20A: | 25A: | 50A: | 0.5A: | 3A: | 600 W: | 100-240 VAC |
| 125 W(max.) | 600 W(max.): | 6 W: | 15 W: | : | |
