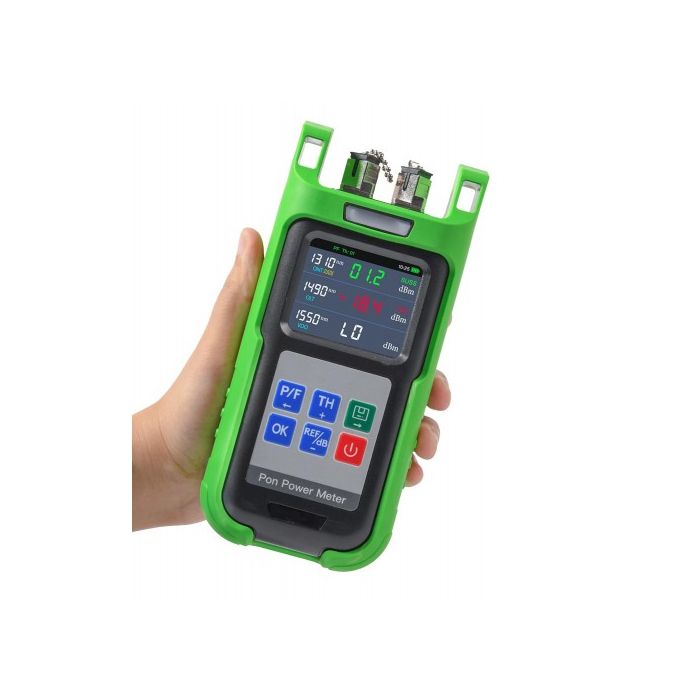

PON Power Meter XC-PON SC-UPC цветен дисплей
Уред за измерване на оптичните нива в XPON мрежи.
Възможност за калибриране.
Захранване със стандартни и акумулаторни батерии тип АА (не са включени в комплекта).
|
Model |
PON |
||
|
Measuring wavelength |
1310nm |
1490nm |
1550nm |
|
Sensor type |
InGaAS |
||
|
Linearity |
0.2dB@1550nm≥-40dBm |
||
|
Isolation with filtering function |
1490nm wavelength ＞40dB |
1310nm wavelength ＞40dB |
1310nm wavelength ＞40dB |
|
1550nm wavelength ＞40dB |
1550nm wavelength ＞30dB |
1490nm wavelength ＞30dB |
|
|
Measuring range |
-40dBm~+16dBm |
-50dBm~+16dBm |
-50dBm~+23dBm |
|
Insertion loss in penetration mode(dB) |
Less than 1.5dB |
||
|
Measurable optical frequency broadband |
1260~1360 |
1480~1500 |
1539~1565 |
|
Inherent uncertainty |
0.5dBm 1nW@1550nm |
||
|
Display resolution |
0.01dB |
||
|
Threshold setting |
10 groups are set by the host computer |
||
|
Calibration wavelength |
1310nm/1490nm/1550nm |
||
|
Data storage |
900 sets |
||
|
Working temperature |
-10℃~+50℃ |
||
|
Relative humidity |
0%~95%RH |
||
|
Connector type |
SC/UPC(Other connectors are optional) |
||
|
Power supply |
3 AA batteries (not included) |
||
| Delivery Status | Налично |
|---|
