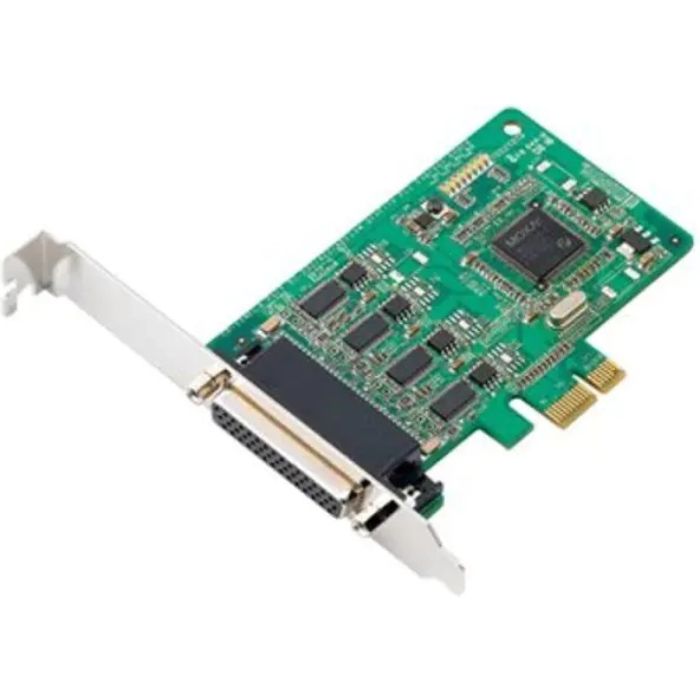

PCIe карта към сериен порт, 4 порта RS-232-422-485, с DB9 мъжки кабел

4-портова RS-232/422/485 нископрофилна серийна карта PCI Express (включва мъжки кабел DB9) Съвместимост с PCI Express 1.0  921.6 kbps максимална скорост за бързо предаване на данни 128-байт FIFO и H/W, S/W контрол на потока на чипа Разнообразие от свързващи кабели и кутии за RS-232/422/485 Нископрофилният форм-фактор пасва на компютри с малък размер Осигурени драйвери за широк избор от операционни системи, включително Windows, Linux и UNIX Лесна поддръжка с вградени светодиоди и софтуер за управление

Serial Interface Comm. Controller: 16C550C compatible Bus: PCI Express 1.0 Connector: DB44 female FIFO: 128 bytes Max. No. of Boards per PC: 8 No. of Ports: 4 Serial Standards: RS-232, RS-422, RS-485 Baud rate: 50 bps to 921.6 kbps (supports non-standard baudrates) Data Bits: 5, 6, 7, 8 Stop Bits: 1, 1.5, 2 Parity: None, Even, Odd, Space, Mark Flow Control: None, RTS/CTS, XON/XOFF Serial Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422: Tx+, Tx-, Rx+, Rx-, GND RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND RS-485-2w: Data+, Data-, GND Serial Software Features Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x UNIX Drivers: QNX 6, Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6 Power Parameters Input Current: 835 mA @ 3.3 VDC Physical Characteristics Dimensions: 67.21 x 103 mm LED Interface LED Indicators: Built-in Tx, Rx LEDs for each port Environmental Limits Operating Temperature: 0 to 55°C (32 to 131°F) Storage Temperature (package included): -20 to 85°C (-4 to 185°F) Ambient Relative Humidity: 5 to 95% (non-condensing) Standards and Certifications EMC: EN 55032/35 EMI: CISPR 32, FCC Part 15B Class B EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF Declaration Green Product: RoHS, CRoHS, WEEE MTBF Time: 2.347.197 hrs Standards: Telcordia (Bellcore) Standard TR/SR
