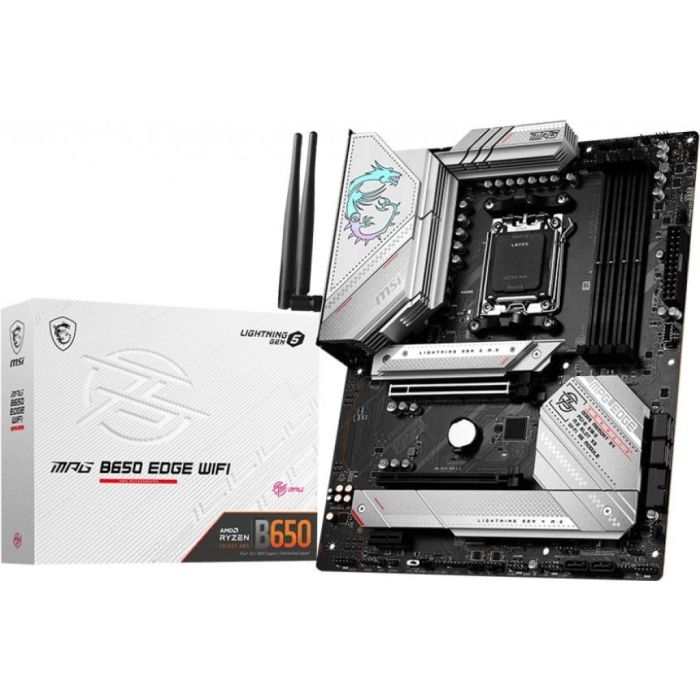

main product photo

MSI MPG B650 EDGE WiFi, Socket AM5, 4xDDR5

479,00 лв.
На склад
SKU
345108
Графика:
  • 1x HDMI™; 1x DisplayPort; Support HDMI™ 2.1 HDR
  • maximum resolution of 4K 60Hz*; Support DP 1.4 HBR3
  • maximum resolution of 8K 60Hz*
CPU's supported:Supports AMD Ryzen™ 7000 Series Desktop Processors;Socket AM5
Chipset:AMD B650
Слотове:1x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 PCIe 4.0 supports up to x16 (From CPU); PCI_E2 PCIe 4.0 supports up to x2 (From Chipset); PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)
Storage:
  • 3x M.2 slot; M.2_1 (From CPU) supports up to PCIe 5.0 x4
  • supports 2280/2260 devices; M.2_2 (From CPU) supports up to PCIe 4.0 x4
  • supports 2280/2260 devices; M.2_3 (From Chipset) supports up to PCIe 4.0 x4
  • supports 2280/2260 devices; 6x SATA 6G port
Тип памет:
  • 4x DDR5
  • Maximum Memory Capacity 128GB; Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Max. overclocking frequency: • 1DPC 1R Max. speed up to 6600+ MHz; • 1DPC 2R Max. speed up to 6000+ MHz; • 2DPC 1R Max. speed up to 6400+ MHz; • 2DPC 2R Max. speed up to 4000+ MHz; Support Dual-Channel mode; Supports non-ECC
  • un-buffered memory; Supports AMD EXPO™
I/O:Display Port; 2.5G LAN; USB 2.0 (Type-A); Wi-Fi / Bluetooth; Audio Connectors; Flash BIOS Button; HDMI™; USB 3.2 Gen 2 10Gbps (Type-A); USB 3.2 Gen 2x2 20Gbps (Type-C); USB 3.2 Gen 1 5Gbps (Type-A); Optical S/PDIF Out
Connectors:1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 6x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB LED connector (JARGB_V2); 2x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0; 2x USB 3.2 Gen1 Type A; 1x USB 3.2 Gen2 Type C
Audio:Realtek® ALC4080 Codec; 7.1-Channel USB High Performance Audio; Supports up to 32-Bit/384 kHz playback on front panel
LAN:Realtek® RTL8125BG 2.5Gbps LAN
Form Factor:ATX ,243.84mmx304.8mm
Операционна система:
  • Support for Windows® 11 64-bit
  • Windows® 10 64-bit
Други:
  • AMD Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX; Supports 20MHz
  • 40MHz
  • 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth® 5.2**
Гаранция:36 Месеца
Повече информация
Повече информация
Процесорен слот AM5
Поддържана памет DDR5
Брой RAM слотове 4
Чипсет AMD B650
