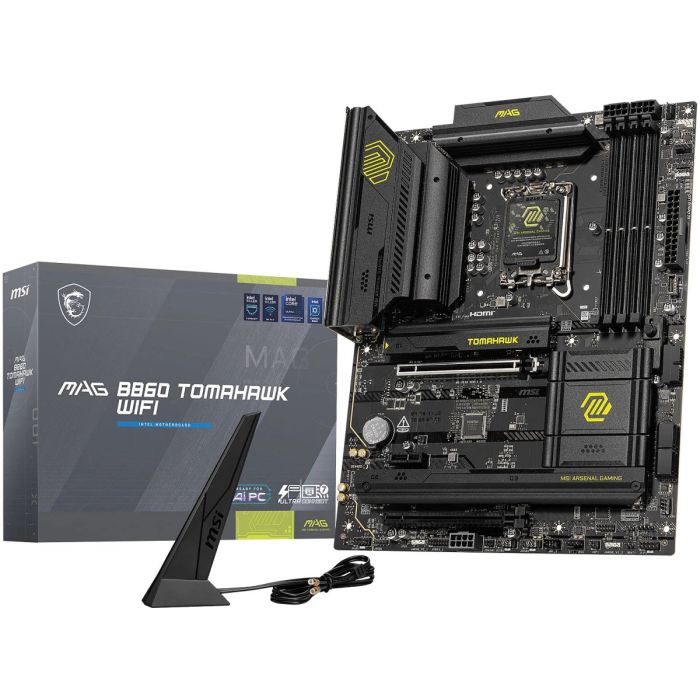

MSI MAG B860 TOMAHAWK WIFI, LGA1851, 4х DDR5, 5000 Mb/s, WiFi 7, ВТ 5.4, HDMI, DP, ATX
MSI MAG B860 TOMAHAWK WIFI, LGA1851, 4х DDR5, 5000 Mb/s, WiFi 7, ВТ 5.4, HDMI, DP, ATX
Технически параметри:
| Сокет: | LGA1851 |
| Чипсет: | Intel B860 |
| Поддържани процесори: | Intel Core Ultra |
| Поддържан тип памет: | DDR5 |
| Честота на паметта: | 6400 MHz |
| Брой слотове за памет: | 4 |
| Максимален капацитет поддържана памет: | До 256 GB |
| Звукова карта: | - 7.1 CH HD Audio
- Realtek Audio
|
| LAN: | - 10/100/1000/2500/5000 Mb/s
- WiFi 7 802.11a/b/g/n/ac/ax/be
- Bluetooth V5.4
|
| Интерфейси: | - 4x SATA3 6.0 Gb/s
- 1x 24-pin ATX Power connector
- 1x Trusted Platform Module (TPM) header
- 1x CPU Fan connector
- 1x Front panel audio connector
- 1x system fan/water cooling pump header
- 2x front panel header
- 4x EZ Debug LED
- 1x PCI Express 4.0 x1
- 1x PCI Express 4.0 x4
- 1x Tuning controller connector
- 1x PCI Express 5.0 x16
- 1x USB 3.2 Gen 2 Type-C
- 1x M.2 slot (NVMe PCIe 5.0)
- 2x USB 3.2 Gen 1 connector
- 4x USB 2.0
- 5x system fan connector
- 1x Chassis Intrusion
- 2x RGB LED connectors
- 3x Addressable V2 RGB LED connector
- 1x 8-pin PCIe Power connector
- 2x 4-pin CPU Power connector
- 1x Thunderbolt5 card connector
- 1x EZ Conn header
- 2x M.2 slot Combo (NVMe PCIe 4.0 / SATA)
- 1x OC dashboard connector
- 1x EZ Memory Detection LED
|
| Портове: | - 1x Optical S/PDIF Out Port
- 1x Microphone-In
- 1x Audio Line-Out
- 2x antenna connectors
- 1x RJ-45
- 1x Clear CMOS Button
- 4x USB 2.0
- 1x BIOS Flashback Button
- 4x USB 3.2 Gen 2 Type-A
- 1x USB 3.2 Gen 2 Type-C
- 1x HDMI 2.1
- 1x USB 4.0 Type-C / Thunderbolt 4
- 1x DisplayPort 1.4
|
| Форм фактор на дънната платка: | ATX |
| Размери: | 30.4 x 24.4 см |
| Окомплектовка: | - 1x SATA кабел
- 1x EZ Front Panel кабел
- 1x EZ Wi-Fi Antenna
- 1x 1 to 2 EZ Conn кабел
- С опаковка
|
Повече информация
| Процесорен слот |
LGA1851 |
| Поддържана памет |
DDR5 |
| Брой RAM слотове |
4.000000 |
| Чипсет |
Intel B860 |
| Delivery Status |
Налично |
