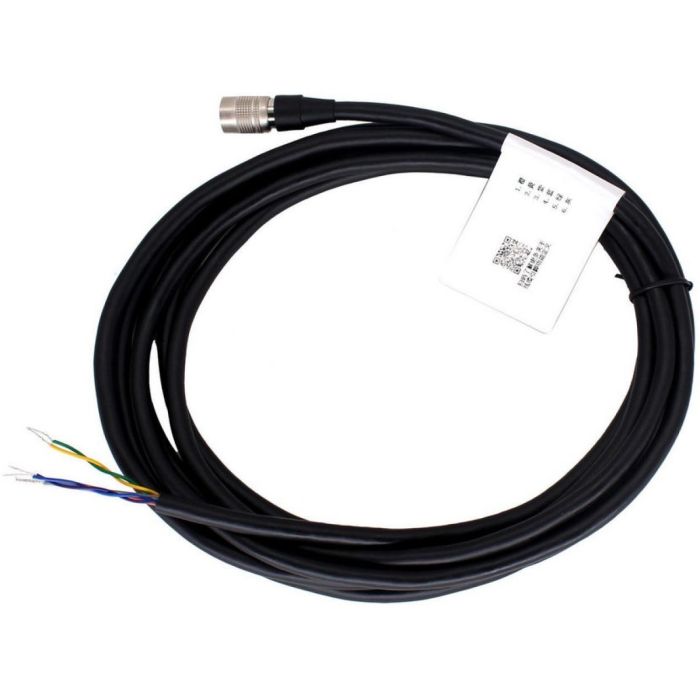

HIKROBOT MV-ACP-H6p-open-HF-7m, Power-IO Hirose 6pin към open, гъвкав, черен, 7 m
110,90 €
На склад
SKU
458832
- The 6-pin P7 High Flex Power&I/O Cable can be used to power the camera, I/O signal wiring, and is available in a variety of lengths.
| Model | Product Model | MV-ACP-H6p-open-HF-7m |
| Type | MV-ACP-H6p-open-HF-7m | |
| Physical specification | End A connector | P7 6-pin，Femal，Black insulator，Solder type |
| End B connector | Open | |
| Cable diameter | 5.5 mm | |
| Length | 5m | |
| Cable mechanical | 2P*28AWG+2C*23AWG+AB | |
| Jacket | PVC | |
| Cable color | Black | |
| Connector model | made in China | |
| Connector durability | ≥ 750 cycles | |
| Min. bending radius | 66 mm | |
| Applicable scenario | Tank chain | |
| Max. U-type bending cycles | ≥ 5 million times | |
| Max. ±90° bending cycles | ≥ 3 million times | |
| Max. ±180° torsional cycles | ≥ 5 million times | |
| Electrical specification | Max. voltage | 30 VDC |
| Additional information | Working temperature | -20℃~80℃ |
| Certification | RoHS2.0 | |
| Packaging | Individual package |
Тегло: 0 кг
| Тип | Захранващ / Power |
|---|---|
| Дължина | 7 м |
| Конектор 1 | P7 6-pin |
| Конектор 2 | Без накрайник |
| Delivery Status | Налично |
