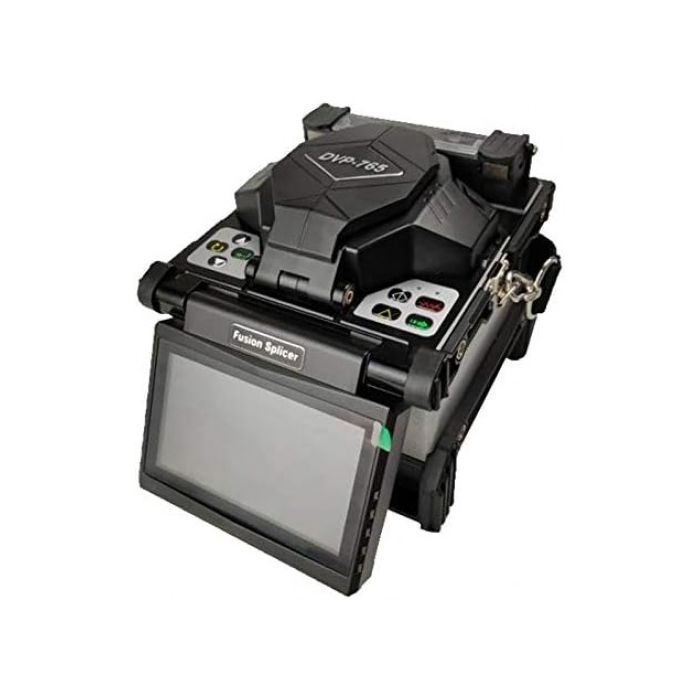

Сплайсер DVP 765

Product Description

Model: DVP-765

Applicable Fibers:SMF(G.652)、MMF(G.651) 、DSF(G.653) 、NZDSF(G.655)、BIF(G.657）

Core Quantity:Single

Typical Splice Loss:0.02dB(SMF)、0.01dB(MMF)、0.04dB(DSF)、0.04dB(NZDSF)、0.02dB(BIF)

Return Loss:≥60dB

Tension Test:2.0N（200gf）Standard

Material of Fiber Core:Quartz Fiber

Fiber Diameter:Cladding Diameter: 80-150 µm; Coating Diameter: 100 µm~3mm

Cleaved Length:8~16mm

Lighting:Available

Estimated Splice Loss:Available

Splicing Time:7 sec

Tube-heat Time:20 sec

Fiber View & Magnification:X, Y, X/Y; 300X Magnification

Alignment:Core-Alignment, Cladding-Alignment, Auto

Electrode Life:5000 arcs, can be extended by using an electrode grinder

Protection Sleeve Length:20-60 mm, and other special sleeves

Splicing Program:6 modes factory preset, 74 user-defined

Heating Program:6 modes factory preset, 14 user-defined

Auto Heat:Yes

Data Storage:8000 results, 200 splice images

Language:Chinese, English

Operating Environment: Temperature：-25～＋50℃； Humidity：0～95%RH：Altitude：0～5000m； Wind Protection：Max. wind velocity of 15m/s

Storage Temp:Temperature：-40～+80℃；Humidity：0～95%RH

Power Supply:AC Adapter：Input Voltage:85～260V, 50/60Hz Battery：Voltage:12V，Capacity:6.5Ah

Battery Power:260 times splicing and heating

Data Management:Can upload the result and screenshot to PC

Display:4.3 color LCD

Dimension/Weight:152（D）×142（W）×145（H）mm 1.57kg/1.98kg(with battery)
