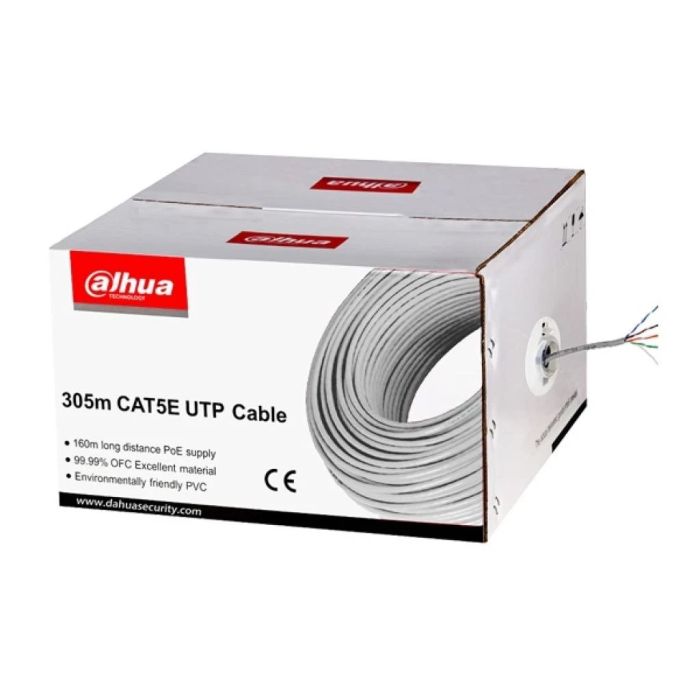

CABLE UTP Cat. 5e 305m, Dahua PFM920I-5EUN, White
75,90 €
На склад
SKU
276703
| Model | DH-PFM920I-5EUN-N | |
| Conductor | Material | OFC(oxygen free copper) |
| Composition | 1/0.45 | |
| Wire gauge | 0.45*4P±0.01mm | |
| Insulation | Material | HDPE |
| Min. average thickness | 0.2mm | |
| Diameter | 0.83mm±0.03mm | |
| Color(4 Pairs) | Orange, white/orange; green, white/green; blue, white/blue; brown, white/brown | |
| Jacket | Material | PVC |
| Min. average thickness | 0.5mm±0.1mm | |
| Diameter | 4.7mm±0.2 mm | |
| Color | White | |
| Length | 305m (1000.66ft) | |
| Max. DC resistance of single conductor | 12 Ω/100m | |
| Max. unbalance rate of line pairs’ direct current resistance | 12% | |
| Min. insulation resistance | 5000MΩ·km | |
| Max. mutual capacitance | 5.6NF/100m | |
| Max. attenuation | 22(dB/100m, 100MHz) | |
| General | N.W. | 7.3kg |
| Packaging dimension | 360mmx360mmx210mm | |
| Weight (with packaging) | 8.1kg | |
Гаранция:
| Тип | cat 5e |
|---|---|
| Екранировка | Неекраниран (UTP) |
| Delivery Status | Налично |
