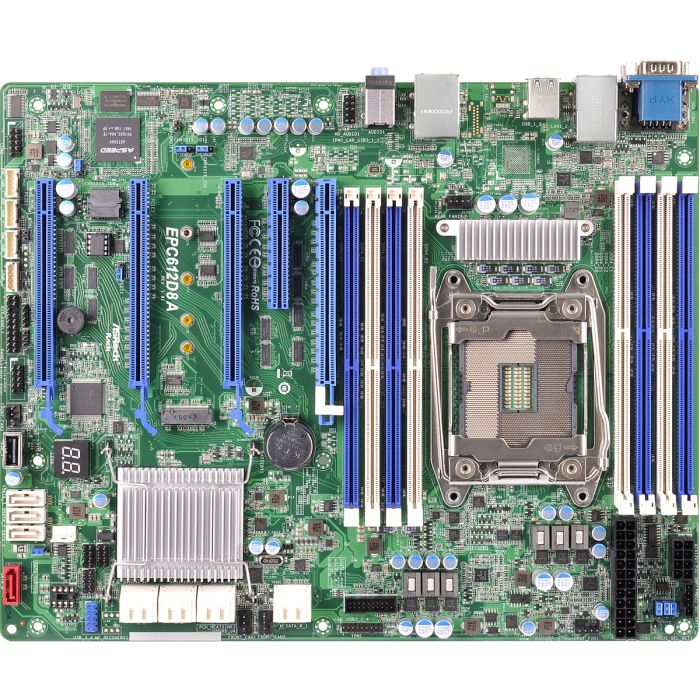

ATX, C612 chipset, 1x soc.2011 R3, DDR4-8 DIMMs, N/AxSATA 3G, 11xSATA 6G, 2 (i210+i217)xGLAN, AST2400 IPMI, Mini PCIe x4, SATA DOM, Audio

Intel Xeon processor E5-1600/2600 v3 series; Supports Quad channel DDR4 2133/1866 LR/R/ECC and UDIMM, 8 x DIMM slots; Support 9 SATA3 by C612 (1 support SATA DOM), 2 SATA3 by Marvell 9172; Supports 4x PCIe 3.0 x16, 1x PCIe 3.0 x8 and 1 mini PCIe slot; Int
MB Physical Status Form Factor:- ATX Dimensions:- 12'' x 9.6'' (30.5 cm x 24.4 cm) Processor System CPU:- Intel^® Xeon processor E5-1600/2600 v3 series Socket:- Single Socket LGA 2011 R3*
*Please use narrow type CPU Cooler Chipset:- Intel^® C612 System Memory Capacity:- 8 DIMM slots Type:- Quad Channel memory technology
- Supports DDR4 2133/1866/1600 LR/R/ECC and NVDIMM Voltage:- 1.2V Expansion Slot PCIe 3.0 x 16:- 4 slots (PCIE1/PCIE3: x16x0 or x8/x8, PCIE5/PCIE7: x16x0 or x8/x8 ) PCIe 3.0 x 8:- 1 slot (PCIE4: x8 or x4 with mini PCIe x4 ) mini PCIe:- 1 (support M.2 (Full and Half size)) (x4) Storage SATA Controller:- C612: 10 x SATA3 6Gb/s ( 1x SATA DOM) Additional Storage Controller:- Marvell 9172: 2 x SATA3 6Gbps Audio Audio Codec:- Realtek ALC1150 Ethernet Interface:- 1000 /100 /10 Mbps LAN Controller:- 2 x RJ45 by Intel^® i210 + Intel^® i217LM
- 1 x RJ45 Dedicated IPMI LAN port
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 Supports NCSI Management BMC Controller:- ASPEED AST2400 IPMI Dedicated LAN:- 1 x Realtek RTL8211E for dedicated management GLAN Features:- Watch Dog
- NMI Graphics Controller:- ASPEED AST2400 VRAM:- DDR3 16MB Rear Panel I/O VGA Port:- 1 x D-Sub USB 2.0 Port:- 2 USB 3.0 Port:- 2 Lan Port:- 2 + 1 (IPMI) Lan port (RJ45)
- LAN Ports with LED (ACT/LINK LED and SPEED LED) Serial Port:- 1 (COM1) ThunderBolt:- NA Display Port:- NA Audio:- 3 Jack Internal Connector Auxiliary Panel Header:- 1 (include chassis intrusion, location button & LED, front LAN LED, system fault LED) TPM Header:- 1 IPMB Header:- 1 Buzzer:- 1 Fan Header:- 1x CPU Fan, 4x system Fan (4-pin) ATX Power:- 1 (24-pin) + 1 (8-pin) USB 3.0 Header:- 1 ( support 2 USB 3.0) USB 2.0 Header:- 1 ( support 2 USB 2.0) Type A USB 3.0 Port:- 1 1394 Header:- 1 Front Panel:- 1 4 pin 5V box connector:- 1 System BIOS BIOS Type:- 128Mb AMI UEFI Legal BIOS BIOS Features:- Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8 Support
- ASRock Rack Instant Flash Hardware Monitor Temperature:- CPU Temperature Sensing
- System Temperature Sensing
- Card Side Temperature Sensing Fan:- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control Voltage:- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB Support OS OS:Microsot Windows
- Windows 7 (32 / 64 bit)
- Windows 8 (32 / 64 bit)
- Windows 8.1 (32 / 64 bit)
- Server 2008 R2 SP1 (64 bit)
- Server 2012 (64 bit)
- Server 2012 R2 (64 bit)
Linux
- RedHat Enterprise Linux Server 5.10/6.5 (32 / 64 bit)
- CentOS 5.10 / 6.5 (32 / 64 bit)
- SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit)
- FreeBSD 9.2 (32 / 64 bit)
- Fedora core 19 (64 bit)
- Ubuntu 12.04.2 (64 bit) / 12.10 (64 bit)
Virtual
- VMWare ESXi 5.5 (not supported for Marvell 9172) Environment Temperature:Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
