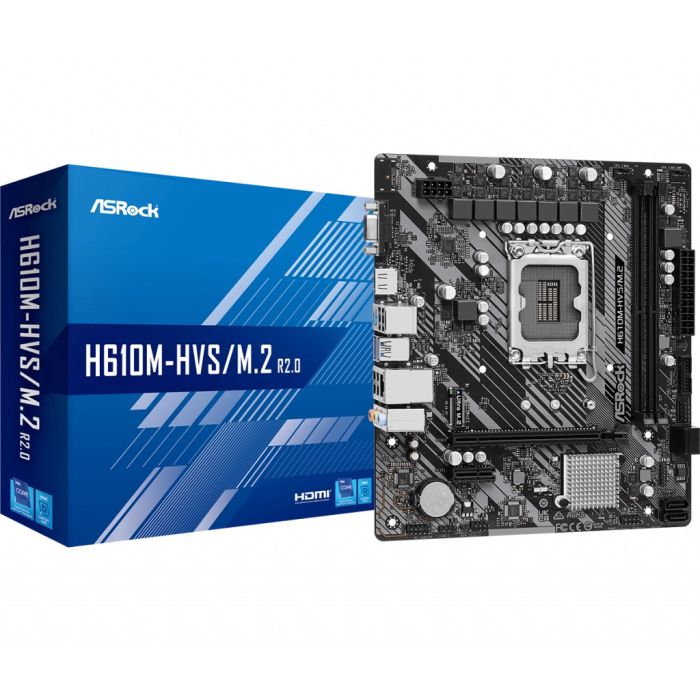

ASROCK H610M-HVS-M.2 R2.0, s.1700, mATX, Intel H610, 2x DDR4

124,90 лв.

На склад

SKU

346267

ASROCK H610M-HVS-M.2 R2.0 е Micro ATX дънна платка с Intel H610 чипсет и сокет LGA1700, поддържаща 12-та и 13-та генерация Intel Core процесори. Оборудвана е с два слота за DDR4 памет до 3200 MHz и максимален капацитет 64 GB, както и с един PCIe 4.0 x16 слот и един PCIe 3.0 x1 слот. За съхранение предлага M.2 слот с PCIe Gen3 x4 и четири SATA 6 Gb/s порта. Видеовыходите включват HDMI 2.1 и D-Sub, поддържащи резолюции до 4K при 60Hz. Звуковата система е 7.1 канална с Realtek ALC897/887, а мрежовата връзка се осъществява чрез Realtek RTL8111H Gigabit LAN.

Графика:	- Intel® Xe Graphics Architecture (Gen 12); - Dual graphics output: support HDMI and D-Sub ports by independent display controllers; - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port
CPU\'s supported:	- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700); - 7 Power Phase design; - Supports Intel® Hybrid Technology; - Supports Intel® Turbo Boost Max 3.0 Technology
Chipset:	- Intel® H610
Слотове:	CPU: - 1 x PCIe 4.0 x16 Slot (PCIE2) supports x16 mode*; Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE1)
Storage:	Chipset: - 1 x Ultra M.2 Socket (M2_2 Key M) supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors
Тип памет:	- Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - Supports DDR4 non-ECC un-buffered memory up to 3200; - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Max. capacity of system memory: 64GB; - Supports Intel® Extreme Memory Profile (XMP) 2.0
I/O:	- 1 x PS/2 Mouse/Keyboard Port; - 1 x D-Sub Port; - 1 x HDMI Port; - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection); - 4 x USB 2.0 Ports (Supports ESD Protection); - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors:	- 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin); - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Audio:	- 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec); - Supports Surge Protection
LAN:	- PCIE x1 Gigabit LAN 10/100/1000 Mb/s; - 1 x Realtek RTL8111H; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE
BIOS:	- 128Mb AMI UEFI Legal BIOS with multilingual GUI support; - ACPI 6.0 Compliant wake up events; - SMBIOS 2.7 Support; - CPU Core/Cache CPU Core/Cache Load-Line CPU GT CPU GT Load-Line DRAM +0.82V PCH +1.05V PCH VCCIN AUX +1.8V PROC +1.05V PROC Voltage Multi-adjustment
Form Factor:	- Micro ATX Form Factor: 8.76-in x 7.4-in 22.3 cm x 18.8 cm; - Solid Capacitor design
Операционна система:	- Microsoft® Windows® 10 64-bit / 11 64-bit
Гаранция:	36 Месеца

Повече информация

Повече информация
Процесорен слот	LGA1700
Поддържана памет	DDR4
Брой RAM слотове	2
Чипсет	Intel H610
