5-портов неуправляем суич Fast Ethernet, метален корпус

Неуправляем Fast Ethernet суич с 5 порта 10/100BaseT(X), захранващ вход 12/24/48, метален корпус, работна температура от -10 до 60°C.

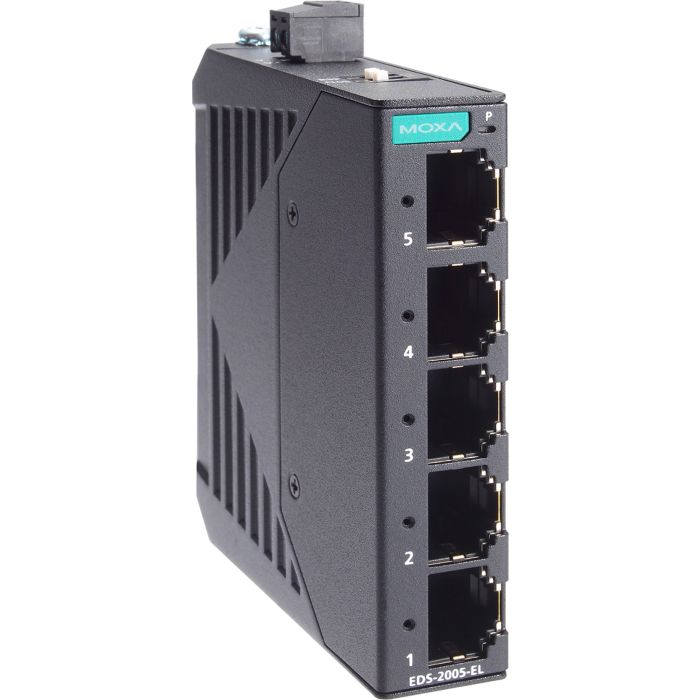

The EDS-2005-EL series of industrial Ethernet switches have five 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2005-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-2005-EL Series has a rugged metal housing to ensure suitability for use in industrial environments. The EDS-2005-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-2005-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2005-EL Series has a standard operating temperature range of -10 to 60°C. Ethernet Interface 10/100BaseT(X) Ports (RJ45 connector): 5, Full/Half duplex mode, Auto MDI/MDI-X connection, Auto negotiation speed Standards: IEEE 802.3 for 10BaseT, IEEE 802.1p for Class of Service, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for flow control Switch Properties Processing Type: Store and Forward MAC Table Size: 2 K Packet Buffer Size: 768 kbits DIP Switch Configuration Ethernet Interface: Quality of Service (QoS), Broadcast Storm Protection (BSP) Power Parameters Connection: 1 removable 2-contact terminal block(s) Input Current: 0.045 A @ 24 VDC Input Voltage: 12/24/48 VDC Operating Voltage: 9.6 to 60 VDC Overload Current Protection: Supported Reverse Polarity Protection: Supported Physical Characteristics Dimensions: 18 x 81 x 65 mm Installation: DIN-rail mounting, Wall mounting (with optional kit) Weight: 105 g Housing: Metal Environmental Limits Ambient Relative Humidity: 5 to 95% (non-condensing) Operating Temperature: -10 to 60°C Storage Temperature (package included): -40 to 85°C Standards and Certifications Safety: UL 61010-2-201, EN 62368-1 (LVD) EMC: EN 55032/35, EN 61000-6-2/-6-4 EMI: CISPR 22, 32, FCC Part 15B Class A EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF Shock: IEC 60068-2-27 Vibration: IEC 60068-2-6 Freefall: IEC 60068-2-32 MTBF Time: 5.258.930 hrs Standards: Telcordia (Bellcore), GB
