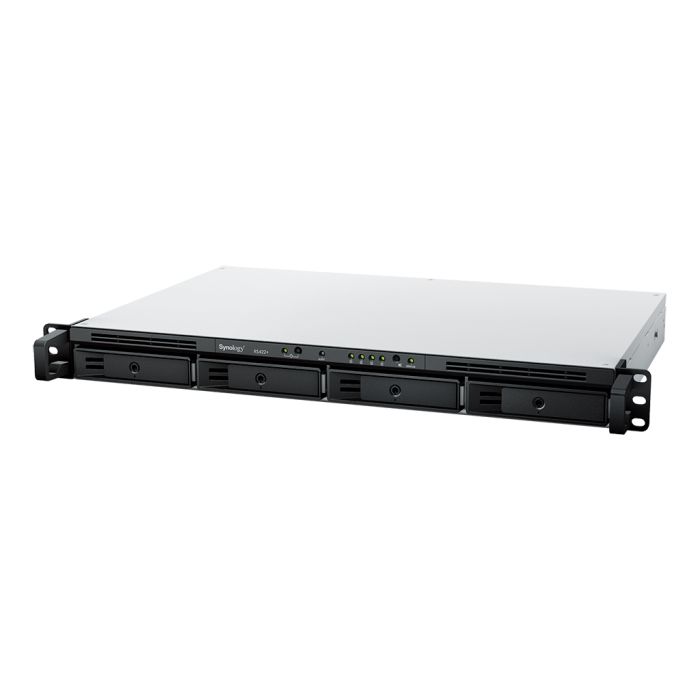

4-bay Synology NAS Server for Small and Medium Business, Rackmount RS422+
1 439,00 лв.
На склад
SKU
321012
Dual core 2,6 GHz CPU, 2 GB DDR4, 2x Gbit LAN, 4x 3.5"/2.5" internal HDD hotswap, USB 3.2 x1
| CPU | CPU Model | AMD Ryzen R1600 |
|---|---|---|
| CPU Quantity | 1 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 2-core 2.6 (base) / 3.1 (turbo) GHz | |
| Hardware Encryption Engine (AES-NI) | V | |
| Memory | System Memory | 2 GB DDR4 ECC |
| Notes | Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. | |
| Storage | Drive Bays | 4 |
| Compatible Drive Type* (See all supported drives) |
| |
| Hot Swappable Drive | V | |
| Notes | "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. | |
| External Ports | RJ-45 1GbE LAN Port* | 2 (with Link Aggregation / Failover support) |
| USB 3.2 Gen 1 Port* | 1 | |
| Notes |
| |
| PCIe | PCIe Expansion | 1 x Gen3 x2 network upgrade slot |
| File System | Internal Drives |
|
| External Drives |
| |
| Appearance | Form Factor (RU) | 1U |
| Size (Height x Width x Depth) | 44 mm x 478 mm x 327.5 mm | |
| Weight | 4.38 kg | |
| Rack Installation Support* | ||
| Notes | The rail kit is sold separately | |
| Others | System Fan | 40 mm x 40 mm x 3 pcs |
| Fan Speed Mode |
| |
| Power Recovery | V | |
| Noise Level* | 28.5 dB(A) | |
| Scheduled Power On / Off | V | |
| Wake on LAN / WAN | V | |
| Power Supply Unit / Adapter | 100 W | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption* | 37.93 W (Access) 13.43 W (HDD Hibernation) | |
| British Thermal Unit | 129.42 BTU/hr (Access) 45.83 BTU/hr (HDD Hibernation) | |
| Notes | For more information on how power consumption is measured, refer to this acrticle. | |
| Temperature | Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
| Certification |
| |
| Warranty | 3-year hardware warranty, extendable to 5-year coverage - EW201 | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) | |
| Environment | RoHS Compliant | |
| Packaging Content |
| |
| Optional Accessories | ||
| DSM Specifications | ||
|---|---|---|
| Maximum Single Volume Size* | 108 TB | |
| Maximum Internal Volume Number | 64 | |
| SSD Read / Write Cache (White Paper) | ||
| SSD TRIM | ||
| Supported RAID Type |
| |
| RAID Migration |
| |
| Volume Expansion with Larger HDDs |
| |
| Volume Expansion by Adding a HDD |
| |
| Global Hot Spare Supported RAID Type |
| |
| Notes |
| |
| File Protocol | SMB/AFP/NFS/FTP/WebDAV | |
| Maximum Concurrent SMB/AFP/FTP Connections | 500 | |
| Windows Access Control List (ACL) Integration | ||
| NFS Kerberos Authentication | ||
| Notes | The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed. | |
| Maximum Local User Accounts | 2,048 | |
| Maximum Local Groups | 256 | |
| Maximum Shared Folder | 512 | |
| Maximum Shared Folder Sync Tasks | 8 | |
| Maximum Hybrid Share Folders | 10 | |
| Notes | For more details about the maximum number of Hybrid Share folders, check this article. | |
| Synology High Availability | ||
| Syslog Events per Second | 800 | |
| Networking Protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV | |
| Supported Browsers |
| |
| Supported Language | English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 | |
| Notes | For an updated list of supported browser versions, check the DSM Technical Specifications. | |
| Add-on Packages view the complete package list | ||
| Antivirus by McAfee (Trial) | ||
| Maximum Number of Concurrent Users | 100 | |
| Notes |
| |
| Document Viewer | ||
| Download Station | Maximum Concurrent Download Tasks | 80 |
| Maximum iSCSI Target Number | 128 | |
| Maximum LUN | 256 | |
| LUN Clone/Snapshot, Windows ODX | ||
| DLNA Compliance | ||
| Facial Recognition | ||
| Maximum Snapshots per Shared Folder | 1,024 | |
| Maximum of System Snapshots | 65,536 | |
| Maximum IP cam (Licenses required) | 40 (including 2 Free License) (see all supported IP cameras) | |
| Total FPS (H.264) | 1200 FPS @ 720p (1280x720) 800 FPS @ 1080p (1920x1080) 350 FPS @ 3M (2048x1536) 280 FPS @ 5M (2591x1944) 170 FPS @ 4K (3840x2160) | |
| Total FPS (H.265) | 1200 FPS @ 720p (1280x720) 1200 FPS @ 1080p (1920x1080) 600 FPS @ 3M (2048x1536) 480 FPS @ 5M (2591x1944) 200 FPS @ 4K (3840x2160) | |
| Notes |
| |
| Recommended Number of Concurrent Sync Clients | 350 (the number of connections that can be maintained when the recommended number of hosted files was reached) | |
| Recommended Number of Hosted Files | 5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above) | |
| Notes |
| |
| Maximum Users | 200 | |
| Notes |
| |
| Maximum Connections | 40 | |
