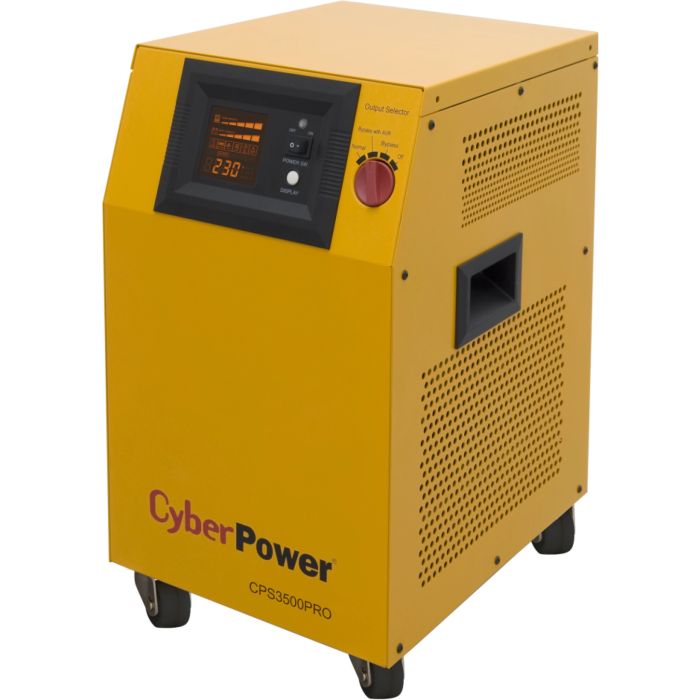

Инвертор 3500VA/2450W, 140-300 Vac, 24 Vdc, 1х HDB, 2x Schuko, AVR, синусоидален изход; работи с външни батерии; CPS3500PRO
1 059,00 €
На склад
SKU
440269
Няма батерия в комплекта, работи с външни оловно-кисели батерии
General | ||||
| Capacity (VA) | 3500 | |||
| Capacity (Watts) | 2450 | |||
Input | ||||
| Generator Compatibility | Yes | |||
| Nominal Input Voltage (Vac) | 220, 230, 240 | |||
| Input Voltage Range (Vac) | 140 ~ 300 Vac | |||
| Input Frequency (Hz) | 50 ± 5, 60 ± 5 | |||
| Input Frequency Detection | Auto-sensing | |||
| Input Connector Type | Hardwire Terminal Block | |||
Output | ||||
| Output Waveform | Pure Sine Wave | |||
| Output Voltage(s) (Vac) | 220 ± 5%, 230 ± 5%, 240 ± 5% | |||
| Output Frequency (Hz) | 50 ± 1%, 60 ± 1% | |||
| Automatic Voltage Regulation (AVR) | Single Boost, Single Buck | |||
| Overload Protection (On Utility) | Circuit Breaker | |||
| Overload Protection (On Battery) | Internal Current Limiting | |||
| Manual Switch | Normal, Bypass with AVR, Bypass, Off | |||
| Outlet(s) - Total | 3 | |||
| Outlet Type | Hardwire Terminal Block x 1, Schuko x 2 | |||
| Typical Transfer Time (ms) | 10 | |||
Surge Protection & Filtering | ||||
| Lightning / Surge Protection | Yes | |||
Management & Communications | ||||
| LCD Panel | Yes | |||
| LED Indicators | Power On, Wiring Fault | |||
| Audible Alarms | Battery Mode, Low Battery, Overload, Overcharge, Overheat | |||
| Power Management Software | PowerPanel® Business (Recommended) | |||
| SNMP / HTTP Remote Monitoring | Yes - with optional RMCARD205 | |||
Physical | ||||
| Wheels | Yes | |||
Physical Size | ||||
| Dimensions (WxHxD) (mm.) | 260 x 440 x 330 | |||
| Weight (kg.) | 36.53 | |||
Environmental | ||||
| Operating Temperature (°C) | 0 ~ 40 | |||
| Operating Relative Humidity (Non-condensing) (%) | 0 ~ 95 | |||
Certifications | ||||
| Certifications* | CE, EAC, SONCAP | |||
| RoHS | Yes | |||
External Battery (Optional) | ||||
| Battery Type | Sealed Lead-acid | |||
| Battery Voltage (Vdc) | 24 | |||
| Delivery Status | Налично |
|---|---|
| Limited Quantity | Последни бройки |
