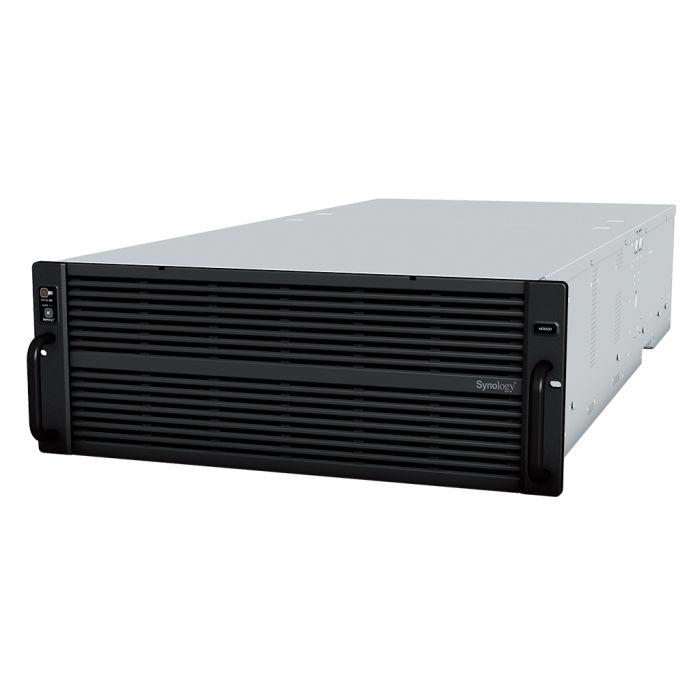

300-bay High density storage server (60 bays on base, up to 300 bays with 4x RX6022sas)
25 239,00 €
SKU
321038
2x Intel Xeon 4210R, 64GB RAM, 2x 10GbE, 2x 1GbE, 4U rackmount
| CPU | CPU Model | Intel Xeon Silver 4210R |
|---|---|---|
| CPU Quantity | 2 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 10-core 2.4 (base) / 3.2 (turbo) GHz | |
| Hardware Encryption Engine (AES-NI) | ||
| Memory | System Memory | 64 GB DDR4 ECC RDIMM |
| Memory Module Pre-installed | 64 GB (32 GB x 2) | |
| Total Memory Slots | 16 | |
| Maximum Memory Capacity | 512 GB (32 GB x 16) | |
| Notes |
| |
| Storage | Drive Bays | 60 |
| Maximum Drive Bays with Expansion Unit | 300 (RX6022sas x 4) | |
| SAS multipathing | ||
| Compatible Drive Type* (See all supported drives) |
| |
| Hot Swappable Drive | ||
| Notes |
| |
| External Ports | RJ-45 1GbE LAN Port | 2 (with Link Aggregation / Failover support) |
| RJ-45 10GbE LAN Port | 2 (with Link Aggregation / Failover support) | |
| Management LAN Port | 1 | |
| Max. number of LAN ports | 15 | |
| USB 3.2 Gen 1 Port* | 2 | |
| Expansion Port | 2 | |
| Notes |
| |
| PCIe | PCIe Expansion |
|
| File System | Internal Drives |
|
| External Drives |
| |
| Notes | exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center. | |
| Appearance | Form Factor (RU) | 4U |
| Size (Height x Width x Depth) | 176 mm x 482 mm x 1020 mm | |
| Weight | 37.9 kg | |
| Rack Installation Support* | 4-post 19" rack (Synology Rail Kit - RKS-03) | |
| Others | System Fan | 80 mm x 80 mm x 4 pcs |
| Fan Speed Mode |
| |
| Easy Replacement System Fan | ||
| Power Recovery | ||
| Noise Level* | 60.8 dB(A) | |
| Scheduled Power On / Off | ||
| Wake on LAN / WAN | ||
| Power Supply Unit / Adapter | 1600 W | |
| Redundant Power Supply | ||
| AC Input Power Voltage | 200V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption* | 1025.2 W (Access) 418 W (HDD Hibernation) | |
| British Thermal Unit | 3495.93 BTU/hr (Access) 1425.38 BTU/hr (HDD Hibernation) | |
| Notes |
| |
| Temperature | Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
| Certification |
| |
| Warranty | 5 Years | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) | |
| Environment | RoHS Compliant | |
| Packaging Content |
| |
| Optional Accessories | ||
| DSM Specifications | ||
|---|---|---|
| Maximum Single Volume Size* |
| |
| Maximum Internal Volume Number | 256 | |
| RAID Group | ||
| Supported RAID Type |
| |
| RAID Migration |
| |
| Volume Expansion with Larger HDDs |
| |
| Volume Expansion by Adding a HDD |
| |
| Global Hot Spare Supported RAID Type |
| |
| Notes | On Peta Volume enabled volumes, Snapshot Replication, shared folder encryption, and compression will not be available. Please refer to this article for more information on limitations. | |
| File Protocol | SMB/AFP/NFS/FTP/WebDAV | |
| Maximum Concurrent SMB/AFP/FTP Connections | 6,000 | |
| Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion) | 6,000 | |
| Windows Access Control List (ACL) Integration | ||
| NFS Kerberos Authentication | ||
| Notes |
| |
| Maximum Local User Accounts | 16,000 | |
| Maximum Local Groups | 512 | |
| Maximum Shared Folder | 512 | |
| Maximum Shared Folder Sync Tasks | 32 | |
| Maximum Hybrid Share Folders | 30 | |
| Notes | For more details about the maximum number of Hybrid Share folders, check this article. | |
| Synology High Availability | ||
| Syslog Events per Second | 6,000 | |
| Virtualization | Citrix Ready | |
| OpenStack | ||
| Networking Protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV | |
| Supported Browsers |
| |
| Supported Language | English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 | |
| Notes | For an updated list of supported browser versions, check the DSM Technical Specifications. | |
| Add-on Packages view the complete package list | ||
| Antivirus by McAfee (Trial) | ||
| Maximum Number of Concurrent Users | 500 | |
| Notes |
| |
| Maximum iSCSI Target Number | 256 | |
| Maximum LUN | 512 | |
| LUN Clone/Snapshot, Windows ODX | ||
| Free Email Accounts | 5 (Licenses required for additional accounts) | |
| Maximum Number of Concurrent Users | 800 | |
| Maximum Server Performance | 2,895,678 emails per day, approx. 85 GB | |
| Notes |
| |
| Maximum Snapshots per Shared Folder | 1,024 | |
| Maximum of System Snapshots | 65,536 | |
| Maximum IP cam (Licenses required) | 150 (including 2 Free License) (see all supported IP cameras) | |
| Total FPS (H.264) | 4500 FPS @ 720p (1280x720) 2800 FPS @ 1080p (1920x1080) 1280 FPS @ 3M (2048x1536) 850 FPS @ 5M (2591x1944) 600 FPS @ 4K (3840x2160) | |
| Total FPS (H.265) | 4500 FPS @ 720p (1280x720) 4500 FPS @ 1080p (1920x1080) 2700 FPS @ 3M (2048x1536) 1500 FPS @ 5M (2591x1944) 1120 FPS @ 4K (3840x2160) | |
| Notes |
| |
| Recommended Number of Concurrent Sync Clients | 2,000 (the number of connections that can be maintained when the recommended number of hosted files was reached) | |
| Recommended Number of Hosted Files | 100,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above) | |
| Notes |
| |
| Maximum Users | 3,400 | |
| Notes |
| |
| Recommended Virtual Machine Instances | 40 (Learn more) | |
| Recommended Virtual DSM Number (Licenses required) | 40 (including 1 Free License) | |
| Notes | The specifications vary depending on system configuration and memory size. | |
| Maximum Connections | 60 | |
| Delivery Status | С поръчка |
|---|
