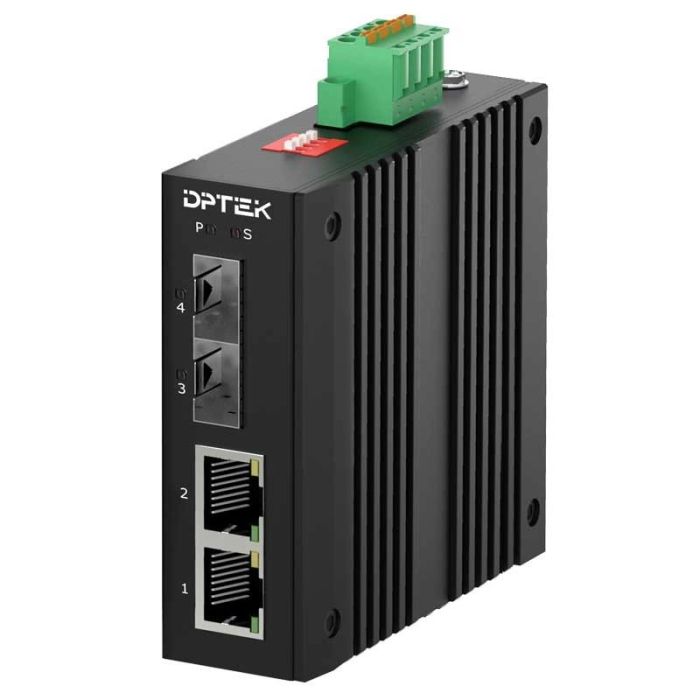

Индустриален оптичен конвертор 2x10-100Base-TX RJ45 PoE + 2x100Base-FX SFP, Din-rail

Features

➢ 2*10/100Base-TX RJ45 PoE ports, 2*100Base-FX SFP fiber ports

➢ DC 44~57V input, redundant power supply with polarity reverse/over-voltage protection

➢ Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard

➢  Powerful Dip switch function:

1.Fiber redundant;  2. Flow control;  3.250m long distance;  4.PoE watchdog

➢ Support 10K Bytes Jumbo frame and 1M large buffer

➢ Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection

➢ IP40 fan-less and Din-rail hardware design with compact size (30*85*85mm)

➢ Operation temperature: -40°C ~+75°C
