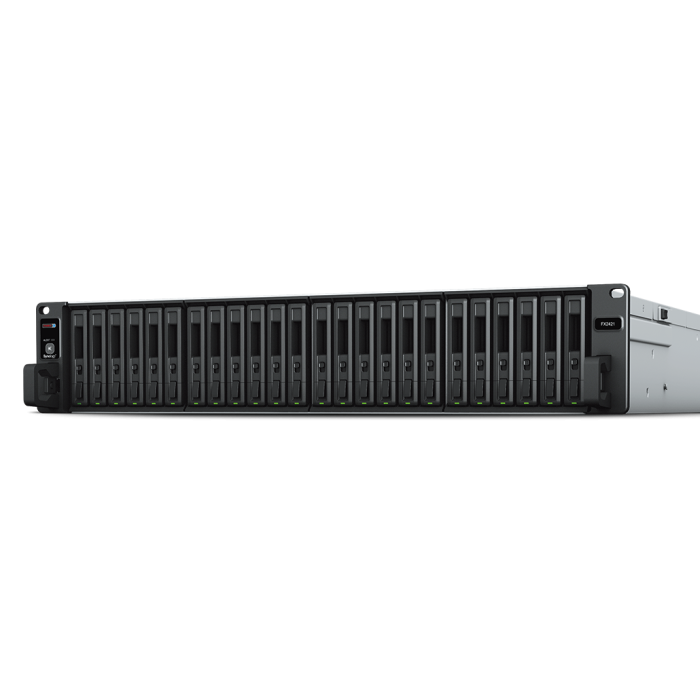

2U 24-bay 2.5" SAS/SATA HDD/SSD redundant SAS JBOD for Synology FlashStation, FX2421

4 539,00 €

SKU

321020

Описание

24x 2.5" HDD, SSD, SAS, SATA bays hotswap, redundant PSU 500W, 1x miniSAS-HD cable

Hardware Specifications
Applied Models	Supports creating volumes across different units	FS series:FS6400, FS3600, FS3400
	Notes	Expansion Unit FX2421 can only be used with identical expansion units. DSM version requirement: 6.2.3-25426-2 or later version. To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit.
Storage	Drive Bays	24
	Compatible Drive Type* (See all supported drives)	2.5" SAS HDD 2.5" SAS SSD 2.5" SATA SSD
	Maximum Internal Raw Capacity	92.16 TB (3.84 TB drive x 24) (Capacity may vary by RAID types)
	Hot Swappable Drive	V
	RAID Management through Synology DSM	V
	Notes	Storage Pool and volume creation require all drives to be listed as compatible on the device model's compatibility list. "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports	SAS IN-port	1
	SAS OUT-port	1
Appearance	Size (Height x Width x Depth)	88 mm x 430.5 mm x 692 mm
	Size (Height x Width x Depth) (with server ears)	88 mm x 482 mm x 724 mm
	Weight	14.5 kg
	Rack Installation Support*	4-post 19" rack (Synology Rail Kit - RKS1317)
	Notes	The rail kit is sold separately
Power	Power Supply Unit / Adapter	500 W
	AC Input Power Voltage	100 V to 240 V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption*	190.99 W (Access)
	British Thermal Unit	651.68 BTU/hr (Access)
	Redundant Power Supply (for RP model)	V
	Notes	Power consumption is measured when it is fully loaded with HGST 1.8TB HUC101818CS4204 hard drive(s).
Temperature	Operating Temperature	0°C to 35°C (32°F to 95°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Others	System Fan	80 mm x 80 mm x 4 pcs
	Easy Replacement System Fan	V
	Noise Level*	57 dB(A)
	Notes	Noise Level Testing Environment: Fully loaded with Toshiba 600GB AL14SEB060N hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Certification	UL
Warranty	5 Years
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment & Packaging
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Expansion Cable: MiniSAS-HD X 1 Quick Installation Guide X 1
Optional Accessories	2.5" SATA SSD: SAT5200 Rail Kit Sliding: RKS1317
