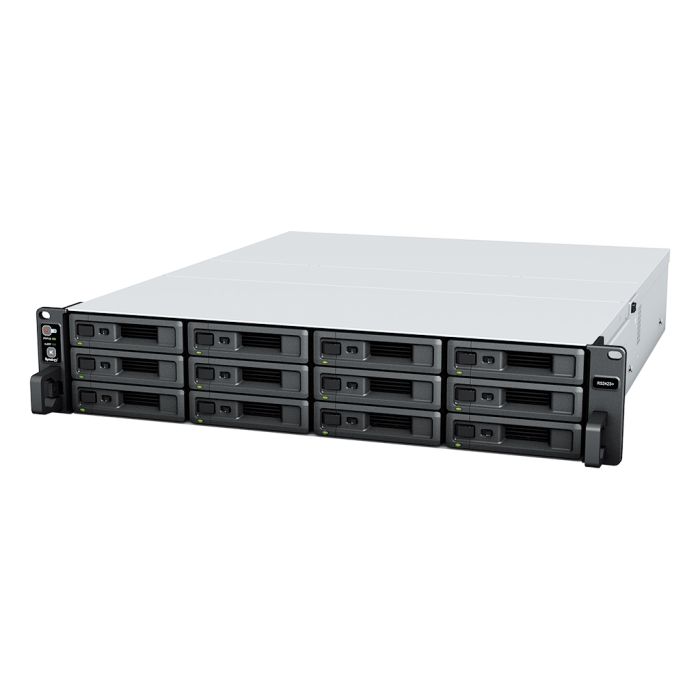

24-bay Synology NAS Server for Small and Medium Business( 12 bays on base, expandable to 24 with RX1223RP) , 2U Rackmount RS2423+

3 059,00 €

SKU

355398

Описание

AMD Ryzen V1780B 4 core 3.35GHz, 8GB DDR4 ECC RAM(up to 32GB), 2x 1GbE, 1x 10GbE, 2x USB3.2

CPU	CPU Model	AMD Ryzen V1780B
	CPU Quantity	1
	CPU Architecture	64-bit
	CPU Frequency	4-core 3.35 (base) / 3.6 (turbo) GHz
	Hardware Encryption Engine (AES-NI)	V
Memory	System Memory	8 GB DDR4 ECC UDIMM
	Memory Module Pre-installed	8 GB (8 GB x 1)
	Total Memory Slots	2
	Maximum Memory Capacity	32 GB (16 GB x 2)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
Storage	Drive Bays	12
	Maximum Drive Bays with Expansion Unit	24 (RX1223RP x 1)
	Compatible Drive Type* (See all supported drives)	3.5" SATA HDD 2.5" SATA SSD
	Hot Swappable Drive*	V
	Notes	Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability. "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports	RJ-45 1GbE LAN Port*	2 (with Link Aggregation / Failover support)
	RJ-45 10GbE LAN Port	1
	USB 3.2 Gen 1 Port*	2
	Expansion Port	1
	Notes	This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe	PCIe Expansion	1 x Gen3 x8 slot (x4 link)
File System	Internal Drives	Btrfs EXT4
	External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT
Appearance	Form Factor (RU)	2U
	Size (Height x Width x Depth)	RS2423+ : 88 mm x 482 mm x 552 mmRS2423RP+ : 88 mm x 482 mm x 578 mm
	Weight	RS2423+ : 11.5 kgRS2423RP+ : 11.9 kg
	Rack Installation Support*	4-post 19" rack (Synology Rail Kit - RKS-02)
	Notes	The rail kit is sold separately
Others	System Fan	60 mm x 60 mm x 3 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Easy Replacement System Fan	V
	Power Recovery	V
	Noise Level*	RS2423+ : 52.3 dB(A)RS2423RP+ : 56.2 dB(A)
	Scheduled Power On / Off	V
	Wake on LAN / WAN	V
	Power Supply Unit / Adapter	RS2423+ : 500 WRS2423RP+ : 350 W
	Redundant Power Supply	RS2423+ : -RS2423RP+ :
	AC Input Power Voltage	100 V to 240 V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	RS2423+ : 119.95 W (Access) 46.21 W (HDD Hibernation) RS2423RP+ : 114.86 W (Access) 42.33 W (HDD Hibernation)
	British Thermal Unit	RS2423+ : 409.56 BTU/hr (Access) 157.78 BTU/hr (HDD Hibernation) RS2423RP+ : 392.18 BTU/hr (Access) 144.53 BTU/hr (HDD Hibernation)
	Notes	For more information on how power consumption is measured, refer to this article. Noise Level Testing Environment: A Synology NAS loaded with Synology 480GB SAT5200-480G solid-state drive(s) in idle state. Each G.R.A.S. type 40AE microphone is placed at a 1-meter distance from the front and rear of a Synology NAS. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature	Operating Temperature	0°C to 35°C (32°F to 95°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI VCCI RCM UKCA EAC CCC KC UL
Warranty	3-year hardware warranty, extendable to 5 years with EW202 or Extended Warranty Plus
	Notes	Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions. The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment	RoHS Compliant
Packaging Content	RS2423+ : Main Unit X 1 Accessory Pack X 1 AC Power Cord X 1 Quick Installation Guide X 1 RS2423RP+ : Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Quick Installation Guide X 1
Optional Accessories	DDR4 ECC UDIMM: D4EU01-8G/D4EU01-16G Expansion Units: RX1223RP 3.5" SATA HDD: HAT5300 2.5" SATA SSD: SAT5210 M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1 M.2 SSD Adapter Card: M2D20 25GbE Network Interface Card: E25G21-F2 10GbE Network Interface Card: E10G21-F2/E10G18-T2/E10G18-T1 Rail Kit Sliding: RKS-02 VisualStation: VS360HD Surveillance Device License Pack
	Notes	Certain items may not be available in your location. Please contact your local distributors for more information. All memory modules will operate at the maximum frequency specified by the CPU manufacturer.

DSM Specifications
Storage Management	Maximum Single Volume Size*	200 TB (32 GB memory required) 108 TB
	Maximum Internal Volume Number	64
	SSD Read / Write Cache (White Paper)	V
	SSD TRIM	V
	Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
	RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
	Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10
	Volume Expansion by Adding a HDD	Synology Hybrid RAID JBOD RAID 5 RAID 6
	Global Hot Spare Supported RAID Type	Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10
	Notes	Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored. Each internal volume (may consist of multiple drives) is expandable up to 108 TB (with memory less than 32 GB) or 200 TB (with memory equal to or greater than 32 GB).
File Services	File Protocol	SMB/AFP/NFS/FTP/WebDAV
	Maximum Concurrent SMB/AFP/FTP Connections	2,000
	Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)	2,000
	Windows Access Control List (ACL) Integration	V
	NFS Kerberos Authentication	V
	Notes	Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM. The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Account & Shared Folder	Maximum Local User Accounts	2,048
	Maximum Local Groups	256
	Maximum Shared Folder	512
	Maximum Shared Folder Sync Tasks	32
Hybrid Share	Maximum Hybrid Share Folders	10
High Availability	Synology High Availability	V
Log Center	Syslog Events per Second	1,000
Virtualization	VMware vSphere with VAAI	V
	Citrix Ready	V
	OpenStack	V
General Specifications	Networking Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
	Supported Browsers	Google Chrome Firefox Microsoft Edge Safari
	Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
	Notes	For an updated list of supported browser versions, check the DSM Technical Specifications.
Add-on Packages view the complete package list
Antivirus by McAfee (Trial)	V
Central Management System	V
Synology Chat	Maximum Number of Concurrent Users	150
	Notes	Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds. When applicable, systems are tested configured with maximum memory and set to allow the maximum number of connections.
Document Viewer	V
Download Station	Maximum Concurrent Download Tasks	80
SAN Manager	Maximum iSCSI Target Number	128
	Maximum LUN	256
	LUN Clone/Snapshot, Windows ODX	V
Synology MailPlus / MailPlus Server	Free Email Accounts	5 (Licenses required for additional accounts)
	Maximum Number of Concurrent Users	150
	Maximum Server Performance	1,484,000 emails per day, approx. 45GB
	Notes	Models with more than 4 bays were installed with two SSDs for SSD cache. For tested models with expandable memory, the maximum amount of RAM was installed. The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers. Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Media Server	DLNA Compliance	V
Synology Photos	Facial Recognition	V
Snapshot Replication	Maximum Snapshots per Shared Folder	1,024
	Maximum of System Snapshots	65,536
Surveillance Station	Maximum IP cam (Licenses required)	50 (including 2 Free License) (see all supported IP cameras)
	Total FPS (H.264)	1500 FPS @ 720p (1280x720) 1500 FPS @ 1080p (1920x1080) 1050 FPS @ 3M (2048x1536) 650 FPS @ 5M (2591x1944) 400 FPS @ 4K (3840x2160)
	Total FPS (H.265)	1500 FPS @ 720p (1280x720) 1500 FPS @ 1080p (1920x1080) 1500 FPS @ 3M (2048x1536) 1050 FPS @ 5M (2591x1944) 650 FPS @ 4K (3840x2160)
	Notes	Maximum IP cameras and FPS figures are tested with the device fully populated with drives and under a continuous recording setup. Actual system capabilities may differ depending on system configuration, drive performance, number of features enabled, and if additional workloads are present.
Synology Drive	Recommended Number of Concurrent Sync Clients	600 (the number of connections that can be maintained when the recommended number of hosted files was reached)
	Recommended Number of Hosted Files	50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
	Notes	Exceeding the recommended numbers above will not block application operations, but may result in longer response time. Utilizing SSD cache can significantly improve performance. For tested models with expandable memory, the maximum amount of RAM was installed. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office	Maximum Users	1,800
	Notes	Multiple files were opened for testing and each file was edited by 30 users simultaneously. For tested models with expandable memory, the maximum amount of RAM was installed. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Video Station	V
Virtual Machine Manager	Recommended Virtual Machine Instances	8 (Learn more)
	Recommended Virtual DSM Number (Licenses required)	8 (including 1 Free License)
	Notes	The specifications vary depending on system configuration and memory size.
VPN Server	Maximum Connections	40

Повече информация

Повече информация
Delivery Status	С поръчка
