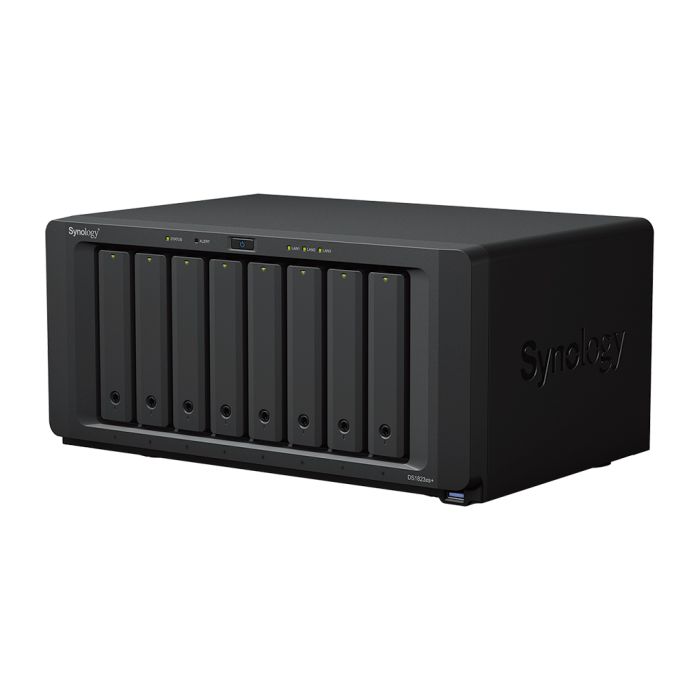

18-bay Synology NAS server for Large Scale Business(8 bays on base, expandable to 18 with 2x DX517) DS1823xs+

2 129,00 €

SKU

355397

AMD Ryzen V1780B quad core 3,35GHz, 8 GB ECC DDR4 (up to 32GB), 2x 1GbE, 1x 10GbE, 1x Management LAN, 3x USB 3.2, 2x NVMe slot

CPU	CPU Model	AMD Ryzen V1780B
	CPU Quantity	1
	CPU Architecture	64-bit
	CPU Frequency	4-core 3.35 (base) / 3.6 (turbo) GHz
	Hardware Encryption Engine (AES-NI)	V
Memory	System Memory	8 GB DDR4 ECC SODIMM
	Memory Module Pre-installed	8 GB (8 GB x 1)
	Total Memory Slots	2
	Maximum Memory Capacity	32 GB (16 GB x 2)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
Storage	Drive Bays	8
	Maximum Drive Bays with Expansion Unit	18 (DX517 x 2)
	M.2 Drive Slots	2 (NVMe)
	Compatible Drive Type* (See all supported drives)	3.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe SSD
	Hot Swappable Drive*	V
	Notes	Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability. The hot swappable drive feature is not supported by M.2 SSD slots. "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports	RJ-45 1GbE LAN Port*	2 (with Link Aggregation / Failover support)
	RJ-45 10GbE LAN Port	1
	Management LAN Port	1
	USB 3.2 Gen 1 Port*	3
	eSATA Port	2
	Notes	This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
PCIe	PCIe Expansion	1 x Gen3 x8 slot (x4 link)
File System	Internal Drives	Btrfs EXT4
	External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT
Appearance	Size (Height x Width x Depth)	166 mm x 343 mm x 243 mm
	Weight	6.2 kg
Others	System Fan	120 mm x 120 mm x 2 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Easy Replacement System Fan	V
	Brightness Adjustable Front LED Indicators	V
	Power Recovery	V
	Noise Level*	23.6 dB(A)
	Scheduled Power On / Off	V
	Wake on LAN / WAN	V
	Power Supply Unit / Adapter	250 W
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	87.93 W (Access) 28.37 W (HDD Hibernation)
	British Thermal Unit	300.23 BTU/hr (Access) 96.87 BTU/hr (HDD Hibernation)
	Notes	For more information on how power consumption is measured, refer to this article. Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle stae. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI VCCI RCM EAC CCC KC
Warranty	5 Years
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2 Quick Installation Guide X 1
Optional Accessories	DDR4 ECC SODIMM: D4ES02-8G/D4ES01-16G Expansion Units: DX517 3.5" SATA HDD: HAT5300 2.5" SATA SSD: SAT5210 M.2 2280 NVMe SSD: SNV3410 25GbE Network Interface Card: E25G21-F2 10GbE Network Interface Card: E10G21-F2/E10G18-T2/E10G18-T1 VisualStation: VS360HD Surveillance Device License Pack

DSM Specifications
Storage Management	Maximum Single Volume Size*	200 TB (32 GB memory required) 108 TB
	Maximum Internal Volume Number	256
	M.2 SSD Storage Pool Support*	V
	SSD Read / Write Cache (White Paper)	V
	SSD TRIM	V
	RAID Group	V
	Supported RAID Type	RAID F1 Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
	RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
	Volume Expansion with Larger HDDs	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
	Volume Expansion by Adding a HDD	RAID F1 JBOD RAID 5 RAID 6
	Global Hot Spare Supported RAID Type	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
	Notes	Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored. Creating M.2 storage pools requires the use of Synology-verified SSDs, which are rigorously tested under extreme temperature conditions. Thermal parameters for SSDs and NAS units are fine-tuned to ensure optimal management of thermal conditions under I/O-intensive environments. (Learn more) Each internal volume (may consist of multiple drives) is expandable up to 108 TB (with memory less than 32 GB) or 200 TB (with memory equal to or greater than 32 GB).
File Services	File Protocol	SMB/AFP/NFS/FTP/WebDAV
	Maximum Concurrent SMB/AFP/FTP Connections	2,000
	Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)	8,000
	Windows Access Control List (ACL) Integration	V
	NFS Kerberos Authentication	V
	Notes	Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM. During testing, the maximum number of SSDs supported by this model is installed in a RAID 5 configuration. The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Account & Shared Folder	Maximum Local User Accounts	16,000
	Maximum Local Groups	512
	Maximum Shared Folder	512
	Maximum Shared Folder Sync Tasks	32
Hybrid Share	Maximum Hybrid Share Folders	15
High Availability	Synology High Availability	V
Log Center	Syslog Events per Second	3,000
Virtualization	VMware vSphere with VAAI	V
	Windows Server 2019	V
	Citrix Ready	V
	OpenStack	V
General Specifications	Networking Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
	Supported Browsers	Google Chrome Firefox Microsoft Edge Safari
	Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
	Notes	For an updated list of supported browser versions, check the DSM Technical Specifications.
Add-on Packages view the complete package list
Antivirus by McAfee (Trial)	V
Central Management System	V
Synology Chat	Maximum Number of Concurrent Users	400
	Notes	Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds. When applicable, systems are tested configured with maximum memory and set to allow the maximum number of connections.
Document Viewer	V
Download Station	Maximum Concurrent Download Tasks	80
SAN Manager	Maximum iSCSI Target Number	256
	Maximum LUN	512
	LUN Clone/Snapshot, Windows ODX	V
Synology MailPlus / MailPlus Server	Free Email Accounts	5 (Licenses required for additional accounts)
	Maximum Number of Concurrent Users	450
	Maximum Server Performance	2,029,000 emails per day, approx. 59GB
	Notes	Models with more than 4 bays were installed with two SSDs for SSD cache. For tested models with expandable memory, the maximum amount of RAM was installed. The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers. Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Media Server	DLNA Compliance	V
Synology Photos	Facial Recognition	V
Snapshot Replication	Maximum Snapshots per Shared Folder	1,024
	Maximum of System Snapshots	65,536
Surveillance Station	Maximum IP cam (Licenses required)	75 (including 2 Free License) (see all supported IP cameras)
	Total FPS (H.264)	2250 FPS @ 720p (1280x720) 2100 FPS @ 1080p (1920x1080) 1500 FPS @ 3M (2048x1536) 900 FPS @ 5M (2591x1944) 550 FPS @ 4K (3840x2160)
	Total FPS (H.265)	2250 FPS @ 720p (1280x720) 2250 FPS @ 1080p (1920x1080) 2250 FPS @ 3M (2048x1536) 1500 FPS @ 5M (2591x1944) 900 FPS @ 4K (3840x2160)
	Notes	Maximum IP cameras and FPS figures are tested with the device fully populated with drives and under a continuous recording setup. Actual system capabilities may differ depending on system configuration, drive performance, number of features enabled, and if additional workloads are present.
Synology Drive	Recommended Number of Concurrent Sync Clients	900 (the number of connections that can be maintained when the recommended number of hosted files was reached)
	Recommended Number of Hosted Files	50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
	Notes	Exceeding the recommended numbers above will not block application operations, but may result in longer response time. Utilizing SSD cache can significantly improve performance. For tested models with expandable memory, the maximum amount of RAM was installed. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office	Maximum Users	2,900
	Notes	Multiple files were opened for testing and each file was edited by 30 users simultaneously. For tested models with expandable memory, the maximum amount of RAM was installed. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Video Station	V
Virtual Machine Manager	Recommended Virtual Machine Instances	8 (Learn more)
	Recommended Virtual DSM Number (Licenses required)	8 (including 1 Free License)
	Notes	The specifications vary depending on system configuration and memory size.
VPN Server	Maximum Connections	60
